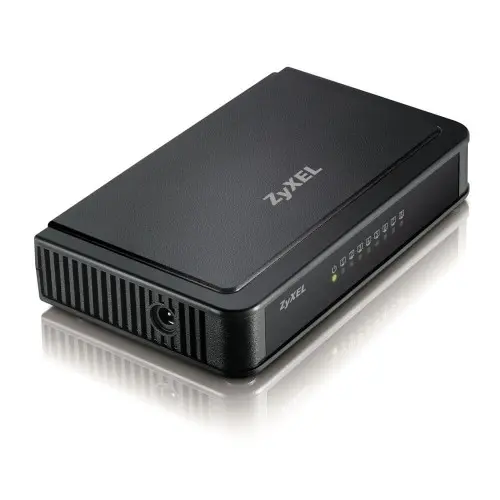

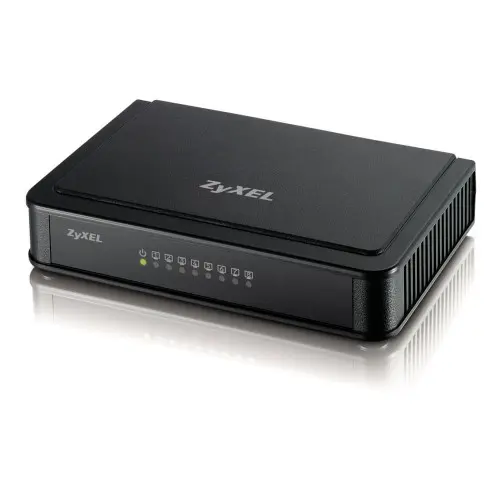

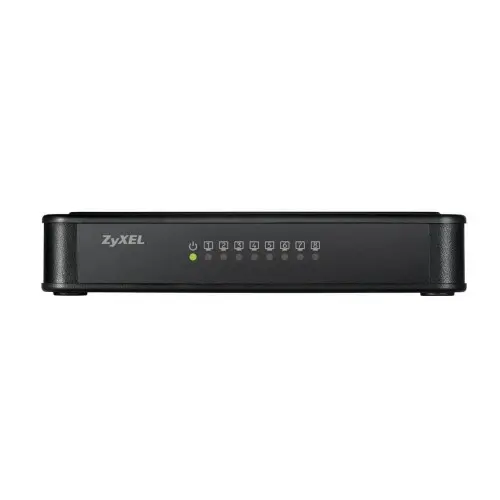

Zyxel ES-108E 8-Port Desktop Fast Ethernet Switch
Quick Details
- MPN: ES-108E-EU01F
- Model: ES-108E
- Transmission method: store-and-forward architecture
- Auto-MDI/MDIX on all ports
- Fast Ethernet: 100/200 Mbps
- Memory buffer: 96 KB
900৳
0.0৳
| Main Feature | |

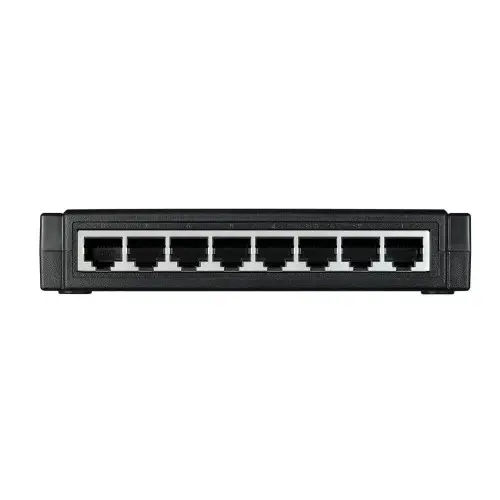

| Port | Eight RJ-45 10/100 Mbps Ethernet ports with auto MDI/MDIX support |
| Network Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3 Nway auto-negotiation IEEE 802.3x full duplex operation and flow control |
| Transmission Method | store-and-forward architecture |
| Data Transmission Rate | Ethernet: 10/20 Mbps Fast Ethernet: 100/200 Mbps |
| MAC Address Table | 2k |
| Environment | Operating environment: Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 10% to 90% (Non-condensing) Storage environment: Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 5% to 90% (Non-condensing) |
| Hardware Features | |
| Power Supply | Power supply: -External switching power adapter Input: 100-240 V AC Output: 9 V DC, 0.6 A Power consumption: 2.5 watt max |
| Dimensions (L x W x H) | (WxDxH): 142 x 87 x 28 mm (5.5” x 3.4” x 1.1”) |
| Weight | 160 g (0.35 lb.) |
| Manufacture Warranty | |
| Warranty | 1 Year |
Description
Zyxel ES-108E 8-Port Desktop Fast Ethernet Switch
Zyxel ES-108E 8-Port Desktop Fast Ethernet Switch featured with Auto-MDI/MDIX on all ports, store-and-forward architecture Transmission method. This Ethernet Switch also comes with Data transfer rate (Half duplex/Full duplex) - Ethernet: 10/20 Mbps, Fast Ethernet: 100/200 Mbps, MAC address table: 2 K, Memory buffer: 96 KB, Switching fabric (non-blocking): 1.6 Gbps. It supports in IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3 Nway auto-negotiation, IEEE 802.3x full duplex operation and flow control network standard. It's hardware also featured with Eight RJ-45 10/100 Mbps Ethernet ports with auto MDI/MDIX support, LED indicator (PWR: Power, Per port: Link/Activity); Power supply - External switching power adapter (Input: 100-240 V AC, Output: 9 V DC, 0.6 A) with 2.5 watt max. Power consumption.
