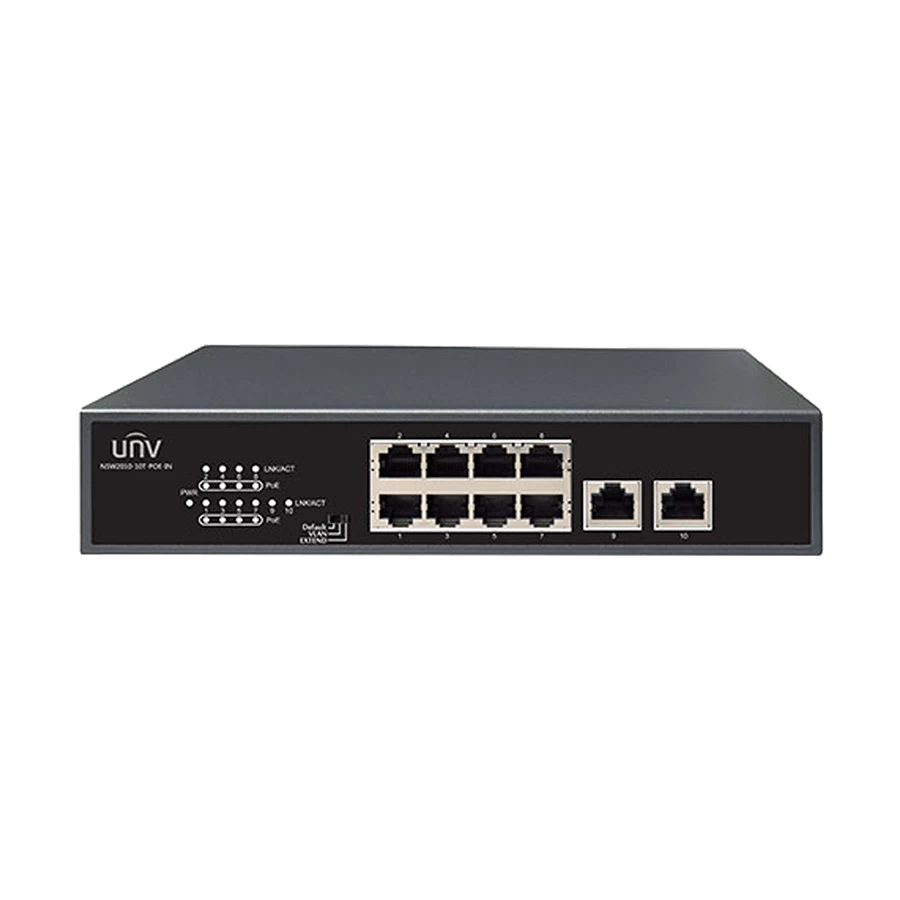

Uniview NSW2010-10T-PoE-IN 10-Port Unmanaged PoE Switch

UNIVIEW NSW2010-10T-POE-IN is an 8-port PoE switch with a total of 10 network ports, all operating at 100Mbps. It supports multiple networking standards, including IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, and IEEE802.3at, ensuring wide compatibility with various devices and networks. This switch offers a switching capacity of 2Gbps and a forwarding performance of 1.49 million packets per second (Mpps). It comes with a 1.625 Mbit packet buffer and supports up to 4,000 MAC addresses. The dimensions of the switch are 220mm in width, 150mm in depth, and 44mm in height, and it weighs less than 1.22 kg. The UNIVIEW NSW2010-10T-POE-IN is powered by an AC power supply ranging from 100-240V at 50/60Hz. The PoE functionality adheres to the 802.3at/af standards, with a maximum PoE power capacity of 120W, allowing up to 30W per single port. Notably, the switch is designed without cooling fans, contributing to its silent operation. It boasts a Mean Time Between Failure (MTBF) of over 50,000 hours, indicating high reliability and durability. The switch operates in ambient temperatures ranging from 0°C to 45°C (32°F to 113°F) and supports operating humidity levels between 10% and 90% (non-condensing), making it suitable for various environments. The storage humidity ranges from 5% to 90% (non-condensing). The device features LED indicators for power (PWR) and PoE status. The PWR indicator remains steady on when the AC input is normal, and turns off when there is no AC input. The PoE indicator remains steady on during normal PoE operation, flashes if there is an abnormal PoE power supply, and turns off when there is no PoE power supply.
