- TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+

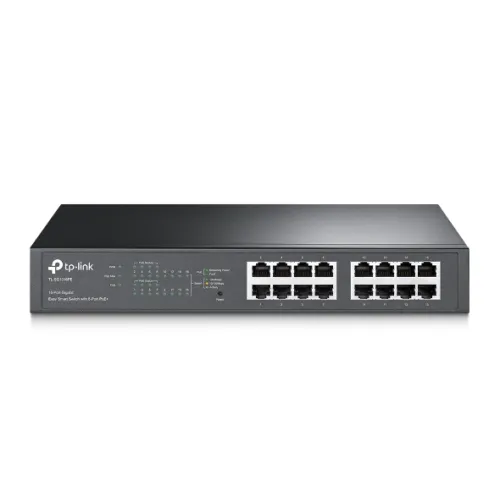

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
Quick Details
- Model: TL-SG1016PE
- 16 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports
- With a total PoE power budget of 110W, up to 30W per port
- Works with IEEE 802.3af/at compliant devices
19,900৳
0.0৳
| Main Feature | |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Transmission Method | Store-And-Forward |
| Data Transmission Rate | 10/ 100/ 1000 Mbps |
| MAC Address Table | 8k |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Hardware Features | |
| Interface | 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| LED | Yes |
| Power Supply | Total PoE Power Budget: 110W Max Power Consumption: 14.7W (no PD load) 131.4W (with 110W PD load) |
| Dimensions (L x W x H) | 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm) |
| Manufacture Warranty | |
| Warranty | 02 Year Warranty |
Description
TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
The TP-Link TL-SG1016PE 16-Port Gigabit PoE+ Managed Switch supports the 802.3af/at PoE networking standard and is designed to power a number of PoE-compatible devices such as IP cameras, IP phones, access points, and more. Simply insert any PoE-compliant device into any of the eight Gigabit Ethernet PoE-compliant ports to start powering that device directly over the network connection. Along with the PoE connections, there are eight more Gigabit Ethernet ports to connect a total of sixteen Ethernet-enabled devices to the switch. The TL-SG1016PE switch has a 32 Gb/s switching capacity, a 23.8 Mb/s forwarding rate, an 8K MAC address table, and a 9KB jumbo frame to guarantee the switch runs smoothly even in high-traffic networks. 8 ports of TL-SG1016PE support the Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras, or IP Phones. The priority feature on the TL-SG1016PE aids in the protection of the system when its power is overburdened. If the total power consumption of all PoE+ devices exceeds 110W, a priority will be assigned to the 16 PoE+ ports, and the system will turn off the power to the lowest-priority port. The TL-SG1016PE is simple to set up and operate. It does not require any configuration or installation. The TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is an excellent choice for growing your home or office network due to its Desktop/Rack mountable design, superb performance, and quality. The TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch comes with a 02-year warranty.
