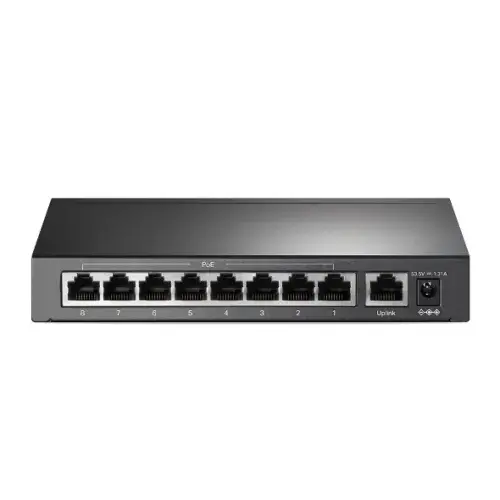

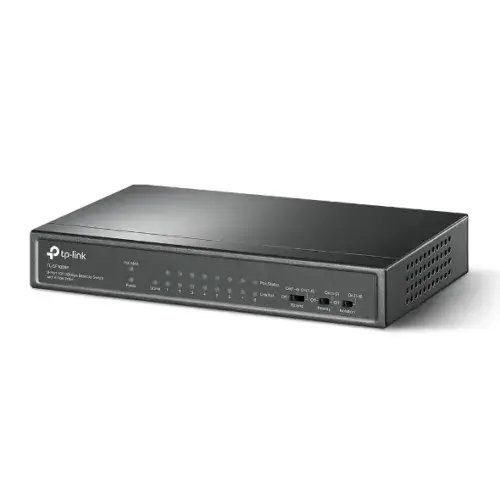

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE
Quick Details
- Model: TL-SF1009P
- 9× 10/100 Mbps RJ45 ports
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
4,690৳
0.0৳
| Main Feature | |
| Network Standard | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) Priority Mode Button (Ports 1–2) Isolation Mode Button (Ports 1–8) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| Transmission Method | Store-And-Forward |
| Data Transmission Rate | 10/100 Mbps |
| MAC Address Table | 2K |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Hardware Features | |
| Interface | 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) AUTO Negotiation AUTO MDI/MDIX |
| LED | Yes |
| Power Supply | External Power Adapter (Output: 53.5VDC / 1.3A) Power Supply: 65 W |
| Dimensions (L x W x H) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Manufacture Warranty | |
| Warranty | 02 Year Warranty |
Description
TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
The TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch offers up to 30 W per PoE port by the 802.3af/at PoE+ standard. The total 65 W PoE power budget for the 8 PoE+ ports enables various applications, including monitoring for workplaces, dorms, and small companies. It works with IP cameras, access points, IP phones, laptops, printers, and other devices.
Priority Video Quality Guaranteed & One-Click Traffic Separation for Ports 1-8
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on. With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storms, improving LAN security and data transmission.
Intelligent Power Management
When overall power usage surpasses 65 W, intelligent power management reduces the power to the lower priority ports. This assures the power supply to the high-priority port and protects the gadget from power overload. It also identifies and supplies the necessary power to your PoE devices while safeguarding your PoE and non-PoE equipment from harm.
Durable Metal Casing
To ensure a long product life, the inside components of the TL-SF1009P are covered by a high-quality metal shell. The TL-SF1009P has passed a battery of rigorous reliability testing and provides dependable switching performance. The TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch comes with a 02-year warranty.
