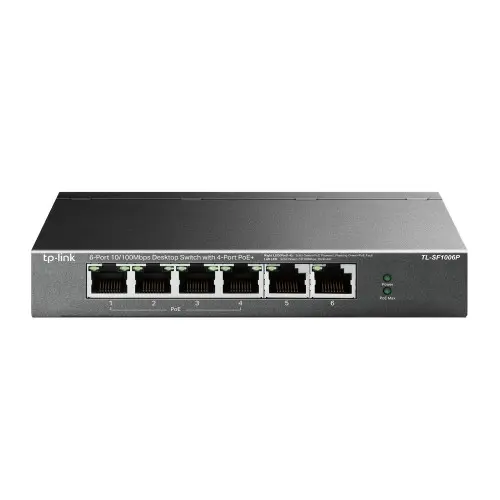

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+
Quick Details
- Model: TL-SF1006P
- 6 x 10/100 Mbps RJ45 ports
- 4 x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Transmission Distance up to 250 m
3,690৳
0.0৳
| Main Feature | |
| Network Standard | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| Transmission Method | Store-And-Forward |
| Data Transmission Rate | 0.8928 Mpps |
| MAC Address Table | 2K |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Hardware Features | |
| Interface | 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX |
| Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) Max Power Consumption: 1.9 W (220 V / 50 Hz, no PD connected) 74 W (220 V / 50 Hz, with 67 W PD connected) |
| Dimensions (L x W x H) | 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm) |
| Manufacture Warranty | |
| Warranty | 1 Year |
Description
TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE+
The TP-Link TL-SF1006P is a Professional High-Power Switch with 4 PoE+ Ports. It comes with 6 x 10/100 Mbps RJ45 ports and 4 x PoE+ ports to transfer data and power on individual cables. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). It supports PoE Transmission for Surveillance up to 250 m. It is in compliance with the 802.3af/at PoE standard and supports up to 30 W on each PoE port. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. It comes in a durable metal casing and ensures a long product life. The TP-Link TL-SF1006P comes with a 1-year warranty.
