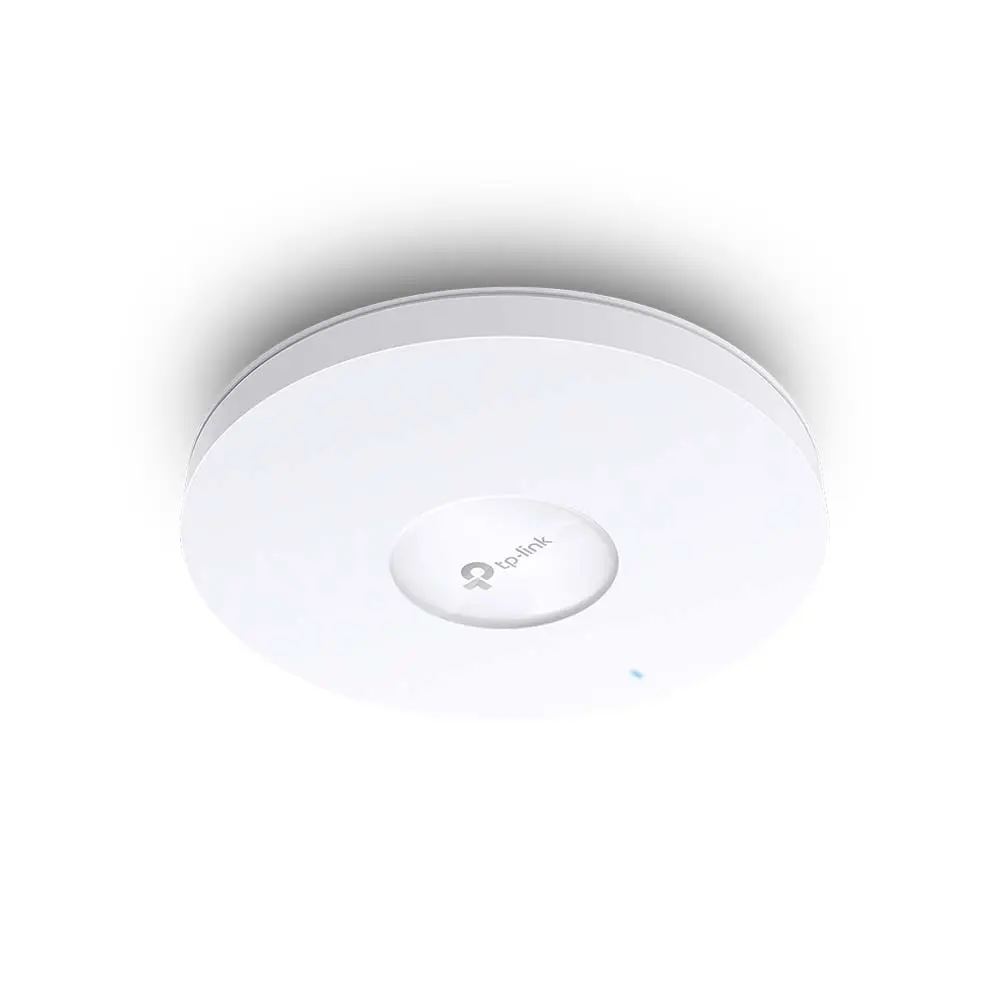

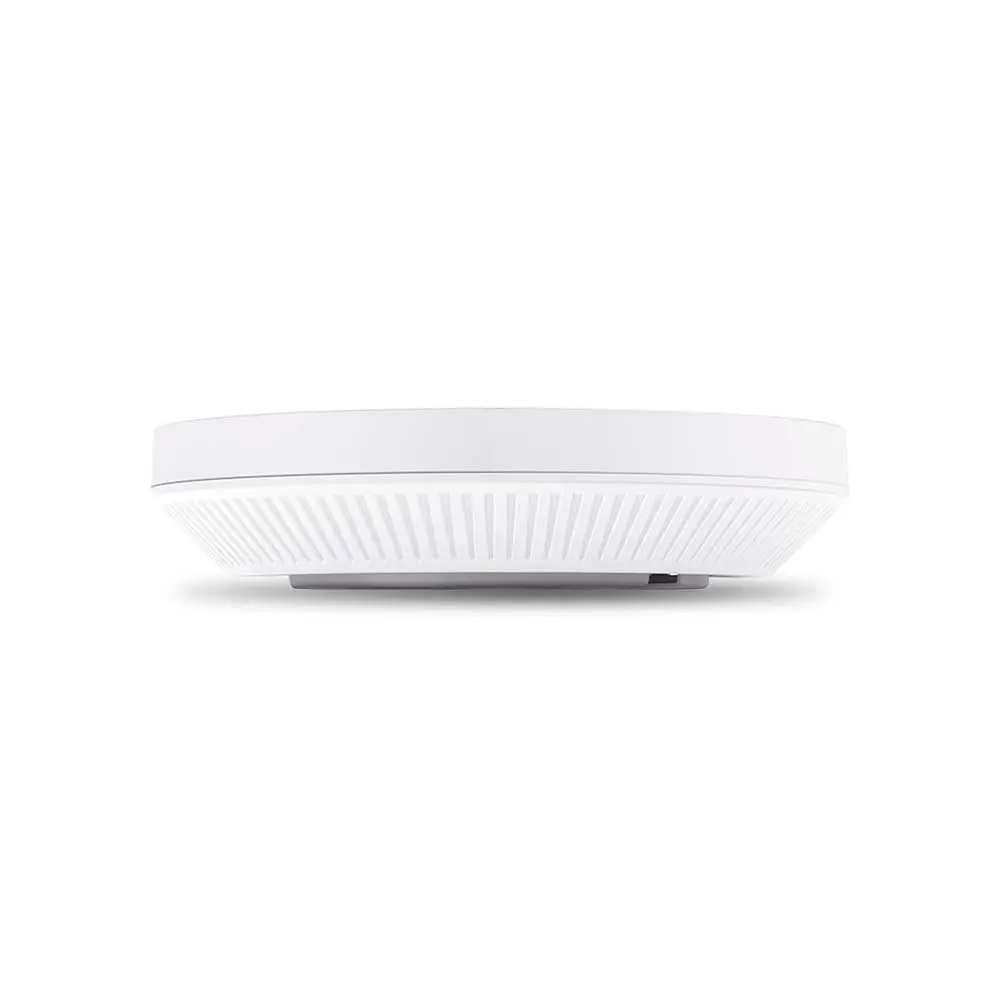

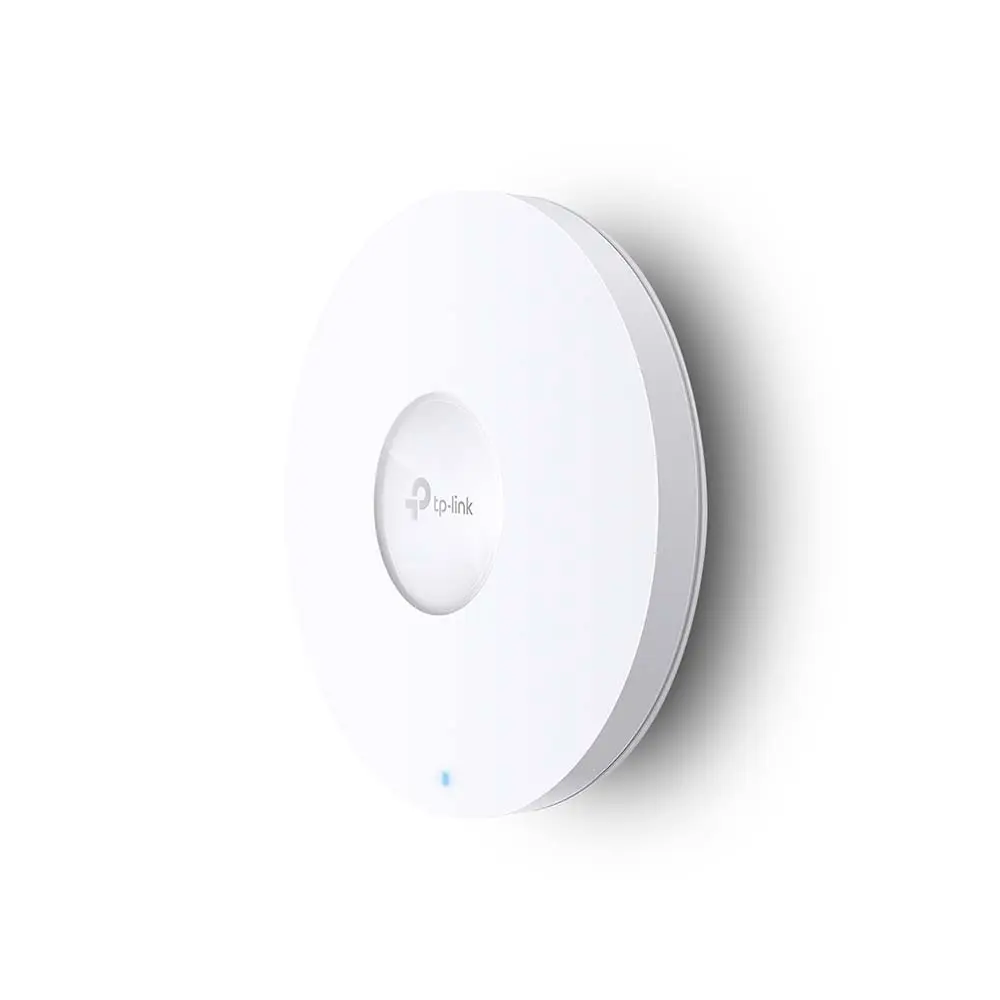

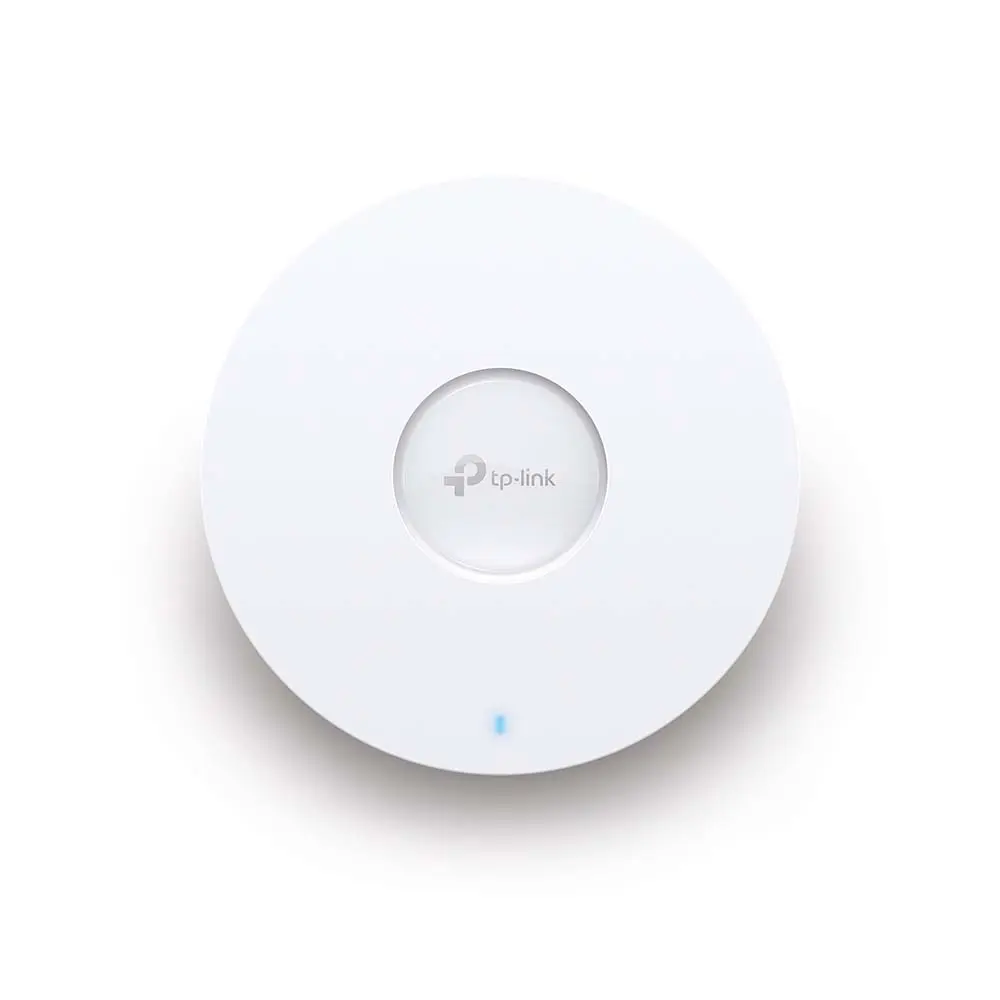

TP-LINK AX1800 Ceiling Mount WiFi 6 Access Point (EAP613)
Quick Details
- Model: EAP613
- Antenna Type: Internal Omni Antenna, PoE+ Powered
- Frequency: Dual-Band (2.4 GHz and 5 GHz), Omada Mesh
- Signal Rate: 5GHz: Max 1201Mbps, 2.4GHz: Max 574Mbps
- Interface: 1× Gigabit Ethernet (RJ-45) Port, Coverage Area: 115㎡(1250 ft²)
0৳
0.0৳
| Main Feature | |
| Antenna | Internal Omni Antenna 2.4 GHz: 2× 4 dBi 5 GHz: 2× 5 dBi |
| Button | Reset |
| Operating System | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Temperature | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Dimensions | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Power | |
| DC jack input Voltage | 48 V Passive PoE 12 V / 1 A DC (Power Adapter IS NOT included) |
| PoE in | 802.3at PoE |
| Power consumption | 11.0W (For PoE); 9.9W (For DC) |
| Network | |
| Wireless Rate | 5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps |
| Wireless frequency | 2.4 GHz and 5 GHz |
| Wireless standards | IEEE 802.11ax/ac/n/g/b/a |
| Ethernet | 1× Gigabit Ethernet (RJ-45) Port |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Others | Wireless Functions 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Manufacture Warranty | |
| Warranty | 02 Year |
Description
TP-Link EAP613 AX1800 Ceiling Mount WiFi 6 Access Point

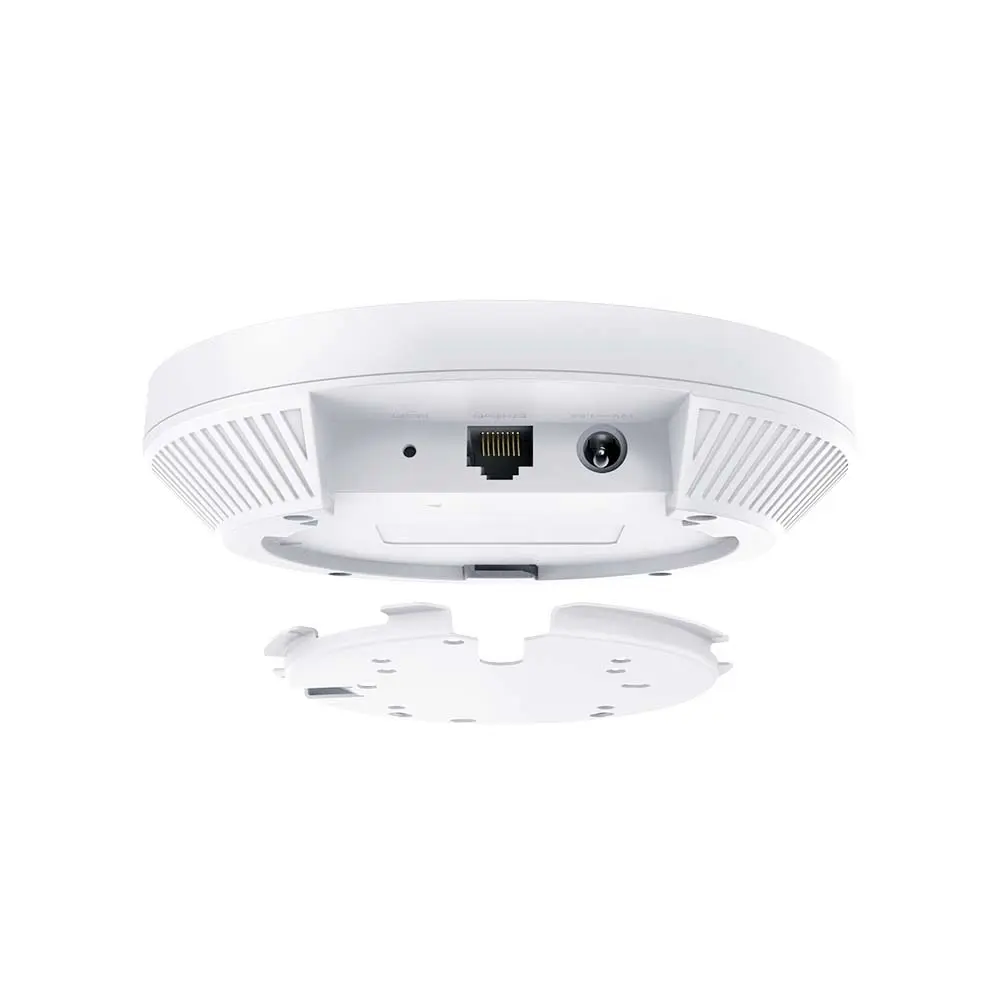

The TP-Link EAP613 AX1800 Ceiling Mount WiFi 6 Access Point provides ultra-fast dual-band Wi-Fi 6 speeds of up to 1775 Mbps (574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz). It is designed to accommodate over 250 concurrent clients, making it appropriate for high-density areas such as workplaces, schools, and hotels. Its technologies, including 1024-QAM, OFDMA, MU-MIMO, beamforming, and airtime fairness, enable efficient, high-speed communication with lower latency and better coverage. The TP-Link EAP613 AX1800 WiFi 6 Access Point features integrated omni antennas with 2×4 dBi gain for 2.4 GHz and 2×5 dBi for 5 GHz, providing steady coverage up to 115 m² (1250 ft²). Fits effortlessly into a number of installations thanks to its mounting choices, which include ceiling, wall, and junction box installation. The TP-Link EAP613 AX1800 Ceiling Mount WiFi 6 Access Point supports a variety of power sources, including 802.3at PoE+, 48V passive PoE, and 12V DC, but a power adapter is not provided. It has a single gigabit Ethernet connector and provides advanced features like seamless roaming, band steering, load balancing, and wireless scheduling to optimize network performance and administration. The TP-Link EAP613 Access Point's numerous SSIDs (up to 16 in total), VLAN mapping, and access control capabilities enable enterprise-level control and segmentation. The centralized cloud management system enables network managers to customize and monitor performance via the Omada app or web interface, providing complete remote access and control. The TP-Link EAP613 AX1800 Access Point includes security features including as WPA3 encryption, captive portal authentication, 802.1X support, MAC address filtering, and rogue AP detection to ensure secure network access.
