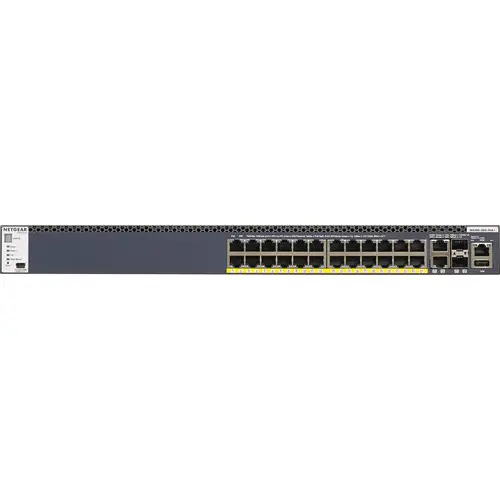

Netgear M4300-28G-PoE+ 26-Port 1G/10G PoE+ Compliant Managed Network Switch with SFP+ (480W)
Quick Details
- Model: M4300-28G
- 128 Gb/s Switching Capacity
- MAC Address Table Size: 16K
- IP Interfaces: 128
- 24x Gigabit, 2x Ethernet Ports, 2x SFP+
0৳
0.0৳
| Main Feature | |
| Network Standard | 802.1ab, 802.1as, 802.1ax, 802.1d, 802.1p, 802.1q, 802.1qat, 802.1qav, 802.1qbb, 802.1s, 802.1v, 802.1w, 802.1x, 802.3, 802.3ad, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3ba, 802.3bz, 802.3u, 802.3x |
| Data Transmission Rate | 128 Gb/s |
| MAC Address Table | 16k |
| Environment | Operating Temperature 32 to 122°F / 0 to 50°C Operating Humidity 90% (Non-Condensing) Storage Temperature -4 to 158°F / -20 to 70°C Storage Humidity 95% (Non-Condensing) Operating Altitude 10,000' / 3048 m Storage Altitude 10,000' / 3048 m Noise Level 30.3 dB |
| Hardware Features | |
| Interface | 24x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 2x 10Gb Ethernet (RJ45) 2x 10Gb SFP 1x Ethernet (RJ45) (Console) 1x RS-232 (Console) 1x Mini-USB (Console) 1x USB-A |
| Power Supply | 110 to 240 VAC, 50 / 60 Hz |
| Dimensions (L x W x H) | 17.32 x 12.2 x 1.73" / 43.99 x 31 x 4.39 cm |
| Weight | 9.94 lb / 4.51 kg |
| Manufacture Warranty | |
| Warranty | Life Time Warranty |
Description
Netgear M4300-28G (GSM4328S) 28 Port Stackable L3 Managed Switch
The Netgear M4300-28G is a 28-port stackable L3 managed switch with 24 Gigabit Ethernet ports, 2 10Gb Ethernet ports, and 2 10Gb SFP connectors. Auto-MDIX/MDI, Auto-VoIP, DHCP Server, DoS, IGMP Snooping, IPv4, IPv6, Link Aggregation, MAC Filtering, Port Mirroring, RADIUS, SNMPv1/2/3, and TLS are among the protocols and standards it supports. It also supports many layer services, including Layer 2 Support, Layer 3 Support, and Layer 4 Support. The Netgear M4300-28G uses store-and-forward transmission and provides a non-blocking switching bandwidth of 128 Gb/s. It contains a 16 Mb packet buffer and a 16K MAC address table. It can accommodate up to 4093 VLAN groups and VLAN IDs. It also supports jumbo frames of up to 9000 bytes and tight priority queuing. The Netgear M4300-28G has DHCP Snooping, DoS Attack Prevention, RADIUS Authentication, and Storm Control, among other security features. It also supports up to 128 IP interfaces and 64 static routes. It supports the exFAT file system and has a maximum video bandwidth of 130 Mbps. It supports the JPEG/RAW photo format as well as the MP4 (H.264/HEVC) video format.
