- Mikrotik RB5009UG+S+IN Heavy Duty Home Lab Router

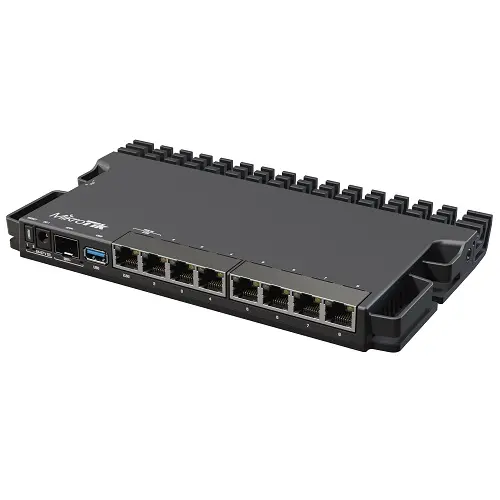

Mikrotik RB5009UG+S+IN Heavy Duty Home Lab Router
Quick Details
- Model: RB5009UG+S+IN
- CPU: 88F7040
- Size of RAM: 1 GB
- Storage size: 1 GB
- Operating System: RouterOS (v7 only)
0৳
0.0৳
| Key Features | |
| Button | Yes |
| Frequency | 2000 MHz |
| Others | Architecture: ARM 64bit CPU: 88F7040 CPU core count: 4 CPU nominal frequency: 350-1400 (auto) MHz RouterOS license: 5 Size of RAM: 1 GB Storage size: 1 GB Storage type: NAND MTBF: Approximately 200'000 hours at 25C Tested ambient temperature: -40°C to 60°C |
| Operating System Support | RouterOS (v7 only) |
| Power Source | |
| Power Mode | Number of DC inputs: 3 (DC jack, PoE-IN, 2-pin terminal) DC jack input Voltage: 24-57 V 2-pin terminal input Voltage: 24-57 V Max power consumption: 20 W Max power consumption without attachments: 14 W Cooling type Passive PoE in: 802.3af/at PoE in input Voltage: 24-57 V |
| Manufacturer warranty | |
| Warranty | 01-year warranty |
Description
Mikrotik RB5009UG+S+IN Heavy Duty Home Lab Router
The Mikrotik RB5009UG+S+IN Heavy Duty Home Lab Router has USB 3.0, 1G, and 2.5G Ethernet, as well as a 10G SFP+ cage. Four new routers may be installed in a single 1U rackmount space! Processing power has never before been seen in such a compact form factor. The board has 9 wired connectors and a full-sized USB 3.0 port. There are seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and one 10G SFP+ cage. All of the ports are linked to a high-performance Marvell Amethyst family switch-chip with a 10 Gbps full-duplex connection to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Because the CPU and switch chip are both positioned on the bottom of the board, the enclosure serves as a large heat sink. The RB5009UG+S+IN may be powered in three ways: PoE-in via the Ethernet port, DC Jack, and a 2-pin side terminal. The boards have 1GB of DDR4 RAM and 1GB of NAND storage. Compared to our other products in a similar form size, this combination of ports and components gives nearly double the performance in systems with severe CPU demands. The Mikrotik RB5009UG+S+IN Router comes with a 01-year warranty.
