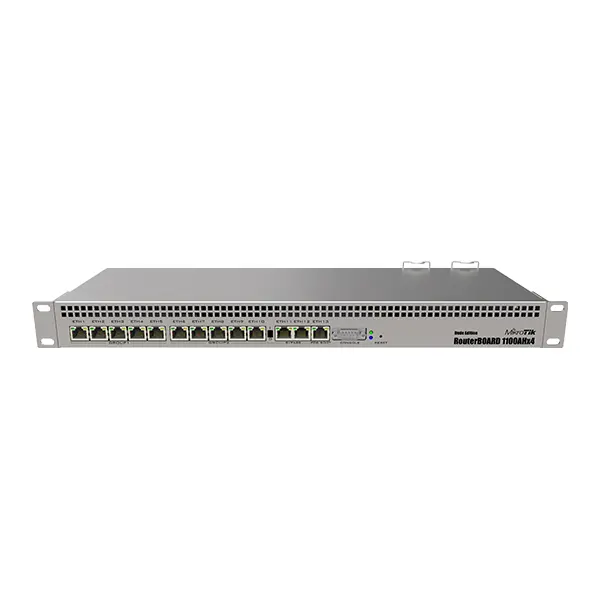

Mikrotik RB1100Dx4 DUDE Edition With RouterOS L6 Indoor CASE-US
Quick Details
Model: RB1100Dx4 Dude Edition
13 Gigabit Ethernet ports
ARM 32-bit 1.4GHz Quad-Core CPU
Built-in hardware encryption engine
RouterOS Level 6 license
0৳
0.0৳
| Model | RB1100Dx4 Dude Edition |
| CPU | Annapurna Alpine AL21400, 4 Cores, 1.4GHz |
| CPU Architecture | ARM 32-bit |
| RAM | 1GB DDR3 |
| Storage | 128MB NAND + 60GB M.2 SATA SSD |
| Ethernet Ports | 13 × Gigabit Ethernet (10/100/1000 Mbps) |
| USB Port | 1 × USB 3.0 |
| Serial Port | RJ45 |
| Operating System | RouterOS v7 (License Level 6) |
| Hardware Encryption | Yes (IPsec AES) |
| Power Supply | Dual redundant 100–240V AC |
| Power Consumption | Up to 25W |
| Cooling System | Active (2 × Smart Fans) |
| Dimensions | 443 × 148 × 44 mm (1U Rackmount) |
| Weight | 1.7 kg |
| Mounting Type | Rackmount (1U) |
| Additional Features | The Dude Server, MicroSD & M.2 Support |
| Operating Temperature | -40°C to +70°C |
| Warranty | 1 Year Manufacturer Warranty |
Description
The Mikrotik RB1100Dx4 Dude Edition is a professional-grade router built for demanding enterprise networks. Powered by an Annapurna Alpine AL21400 quad-core CPU running at 1.4GHz, it delivers exceptional processing power for routing, firewall, and VPN tasks. With hardware-accelerated IPsec encryption, it can handle secure data transfers without compromising speed or efficiency.This router features 13 Gigabit Ethernet ports, allowing flexible network configurations and load balancing across multiple links. It comes with 1GB of DDR3 RAM and includes a 60GB M.2 SATA SSD, making it ideal for running The Dude network monitoring system directly on the device.Equipped with dual redundant power supplies, the RB1100Dx4 ensures maximum uptime and reliability, essential for enterprise or ISP environments. The robust 1U rackmount metal case, smart cooling fans, and wide operating temperature range make it suitable for continuous operation in data centers or network backbones.
