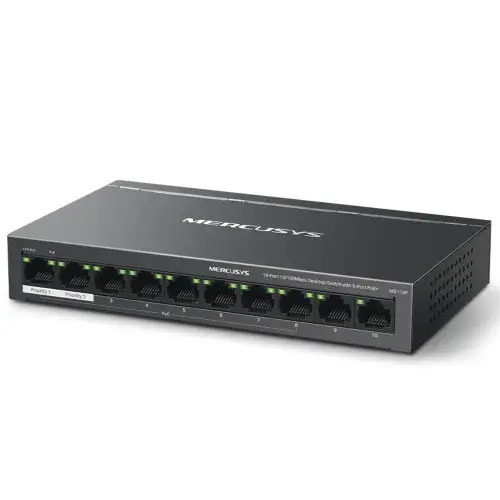

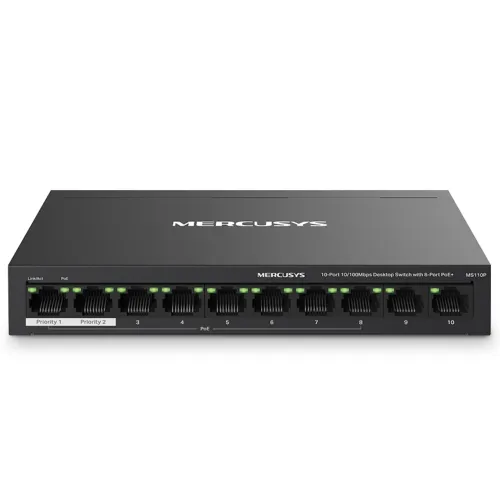

Mercusys MS110P 10-Port 10/100Mbps PoE Desktop Switch

Mercusys MS110P 10-Port 10/100Mbps PoE Desktop Switch

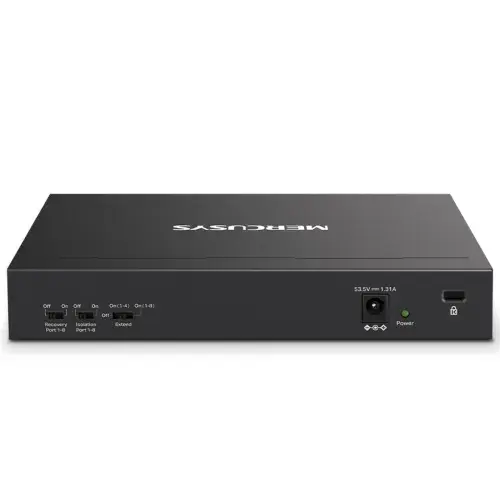

The Mercusys MS110P Desktop Switch has 10 RJ45 ports, 8 of which enable Power over Ethernet (PoE+). It facilitates both data transfer and power delivery to compatible devices while adhering to the 802.3 af/at standards. With a combined power budget of 65 watts, the PoE Ports (Ports 1 to 8) provide effective power distribution for networked devices including wireless access points and IP cameras. Data rates of 10/100 Mbps in half duplex and 20/200 Mbps in full duplex are supported by the switch, and data reliability is improved with IEEE 802.3x Flow Control. The MS110P supports up to 2K entries in the Mac Address Table and a Jumbo Frame size of 2 KB, ensuring effective address management and smooth data transfer. When the isolation mode is activated, the MS110P offers two x uplink ports. There are two connections: one for the Internet and another for the NVR. The external power source adds to the stability of the switch by providing an output of 53.5V/1.31A. The power consumption of the switch is dependent on the network switch connected to it; when all PoE ports are utilized, it can reach a maximum of 77.52W. With a low consumption of 10.064 BTH/h when no PD (Powered Device) is connected, the Mercusys MS110P also exhibits clear energy efficiency, making it a great option for companies looking for a dependable and energy-efficient PoE switch solution.
