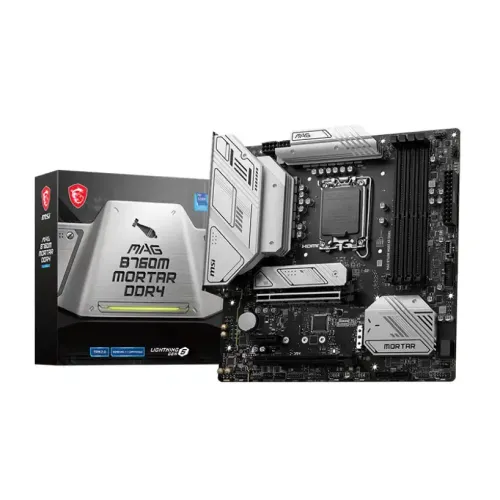

MSI MAG B760M MORTAR DDR4 mATX Motherboard
Quick Details
- Model: MAG B760M MORTAR DDR4
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR4, up to 5333+(OC) MHz
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2x M.2 slot, Realtek 2.5Gbps LAN
| Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Memory | |
| Type | DDR4 |
| Slots | 4 |
| Supported Memory | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
| Maximum Memory | 128GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 2x DisplayPort |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek 2.5Gbps LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | HD Audio Connectors |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
Description

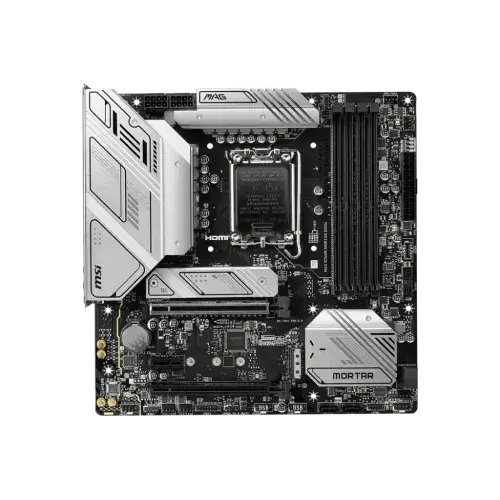

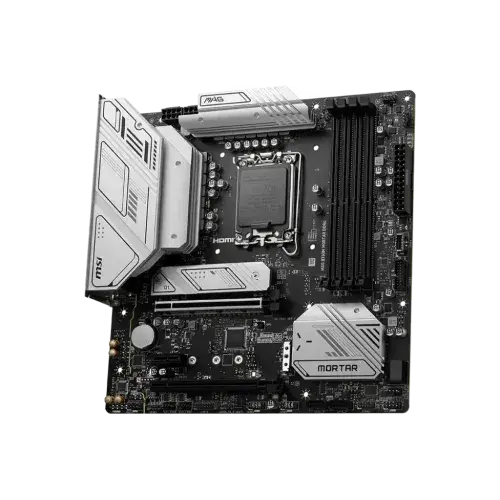

MSI MAG B760M MORTAR DDR4 mATX Motherboard
The MSI MAG B760M MORTAR DDR4 motherboard is an excellent choice for both gamers and power users. It supports Intel Core processors from the 14th 12th and 13th generations, as well as Pentium Gold and Celeron CPUs for the LGA 1700 socket. This motherboard also supports DDR4 memory, which can be overclocked to rates of up to 7000+ MHz. This motherboard's upgraded power architecture is a crucial feature, with a 12+1+1 duet rail power system, two 8-pin CPU power connections, Core Boost, and Memory Boost. These characteristics guarantee that the motherboard can easily manage high-performance processing needs. The 14th Gen Motherboard delivers a lightning-fast gaming experience for gamers. It has a PCIe 5.0 slot, a Lightning Gen 4 x4 M.2 slot, and a USB 3.2 Gen 2x2 port for quick data transmission and connection. This motherboard has a premium thermal solution, which incorporates an expanded heatsink design and M.2 Shield Frozr to avoid overheating. Its design assures that the system can operate at peak performance for extended periods without failure. The MSI MAG B760M MORTAR DDR4 motherboard also has an audio boost for studio-quality sound and a high-quality PCB constructed with 2oz thicker copper and server-grade level material. These qualities ensure that the motherboard is long-lasting and sturdy. This MSI MAG B760M MORTAR DDR4 motherboard is a strong and efficient choice for individuals looking for a high-performance system with quick connectivity and excellent audio quality.
