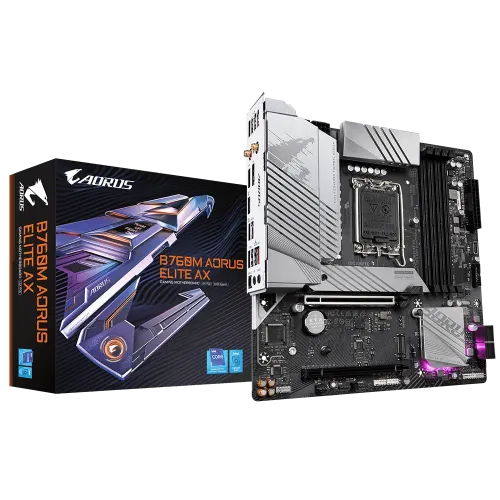

GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard
Special Price:
26,000৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
02581
Quick Details
- Model: B760M AORUS ELITE AX DDR5
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 128GB 7600(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211
26,000৳
0.0৳
EMI
Price*
Start form 3210৳/month. For Discount
Price
Check here to
view
27 bank emi plans
| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
| Memory | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 128GB |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |

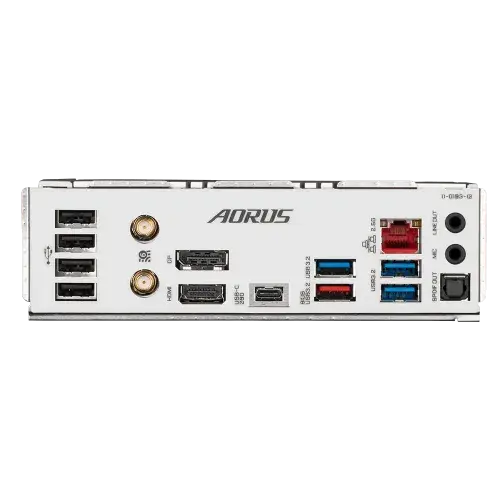

| USB (s) | 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio | 1 x front panel audio header 2 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
Description

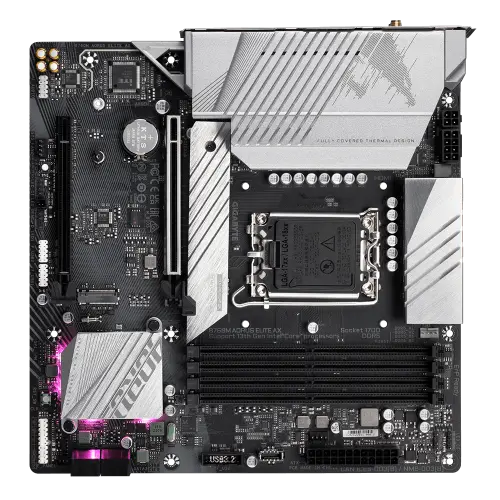

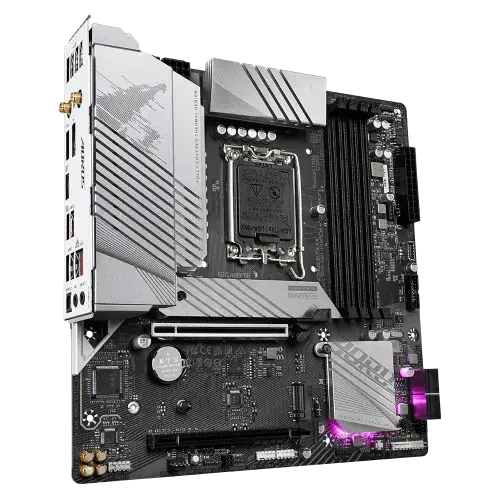

GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard
The GIGABYTE B760M AORUS ELITE AX DDR5 is a micro ATX motherboard designed for usage with Intel CPUs from the 14th, 13th and 12th generations. It boasts a Twin 12*+1+1 Phases Digital VRM Solution for unrivaled performance, dual channel DDR5 memory with 4 SMD DIMMs, and XMP 3.0 compatibility. In addition, the 14th Gen Motherboard includes two PCIe 4.0 x4 M.2 ports for next-generation storage, a superior thermal design, and M.2 Thermal Guard to assure VRM power stability and M.2 SSD performance. Furthermore, the EZ-Latch Plus function enables rapid release and screwless M.2 connection design. 2.5GbE LAN and Intel Wi-Fi 6E 802.11ax offer network connectivity, while the motherboard also has front USB-C 10Gb/s, back USB-C 20Gb/s, DP, and HDMI for additional connectivity. The Smart Fan 6 feature contains numerous temperature sensors as well as hybrid fan headers with FAN STOP, and the Q-Flash Plus allows you to update the BIOS without having to install the CPU, RAM, or graphics card.
