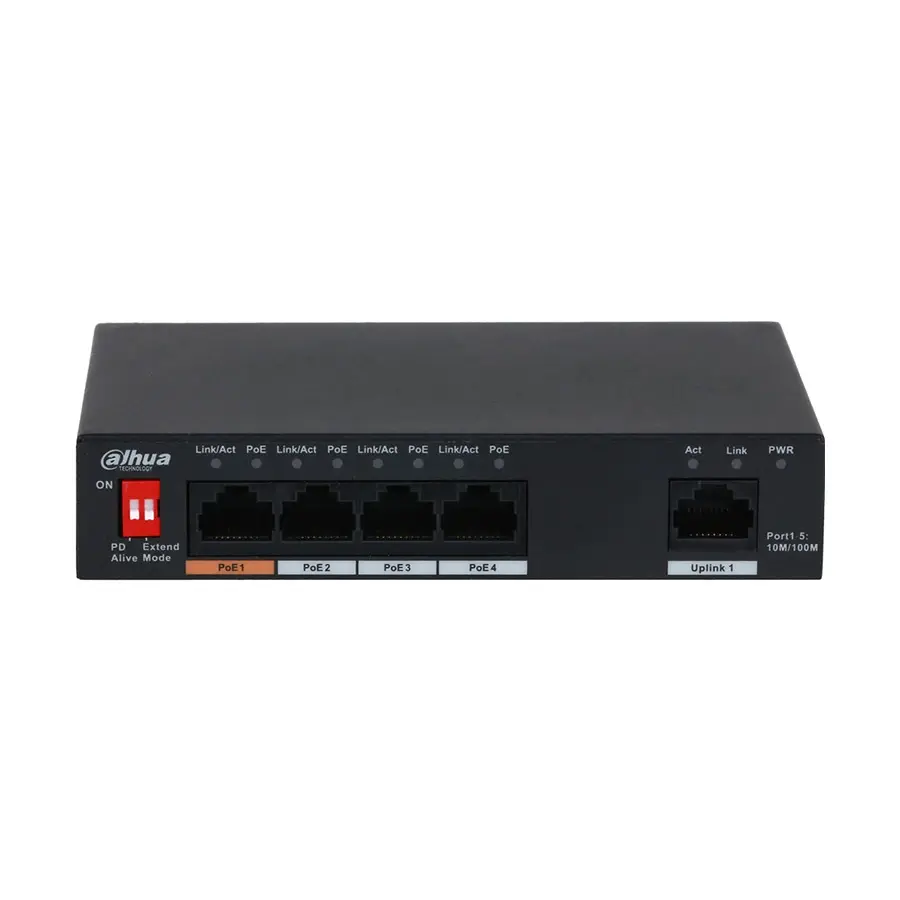

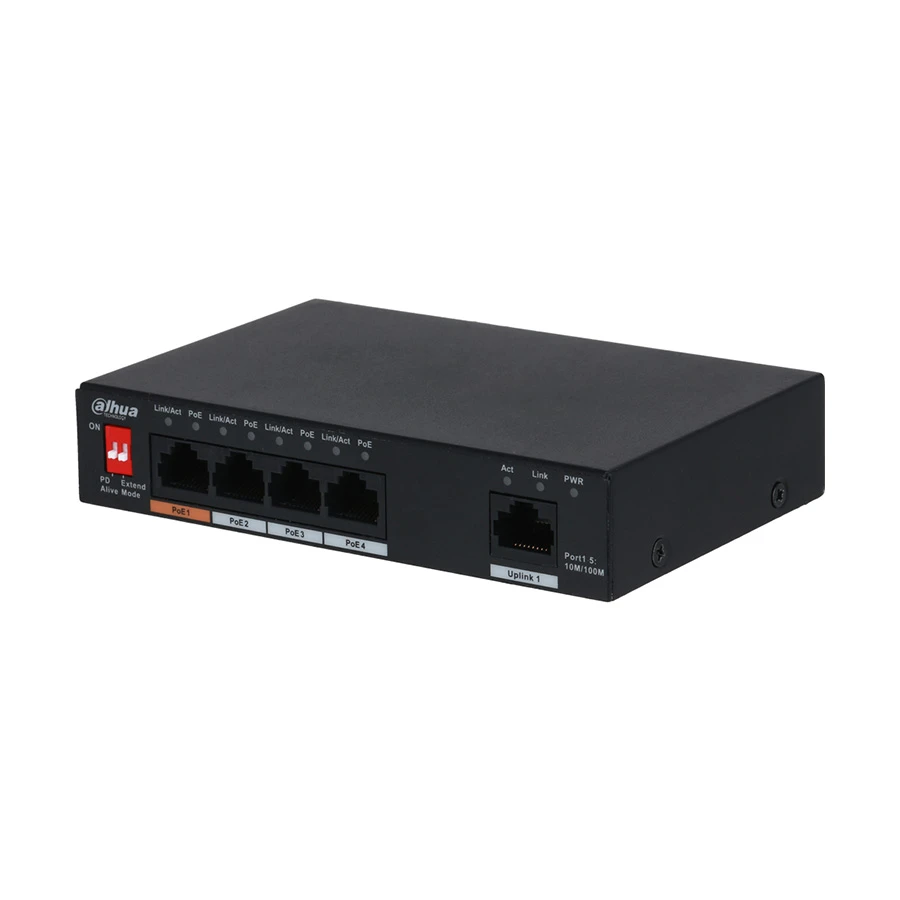

Dahua 5-Port Fast Ethernet Switch With 4-Port POE-60 Watt#DH-SF1005P
Quick Details
Model: DH-SF1005P
Ports: 5 × 10/100 Mbps RJ45 (4 PoE + 1 Uplink)
PoE Power: Up to 60W total (Hi-PoE on port 1)
PoE Standards: IEEE 802.3af/at (ports 2–4), Hi-PoE (port 1)
Management: Unmanaged Layer 2 switch
Mounting: Desktop or wall-mountable
5,500৳
0.0৳
| Total Ports | 5 (4 PoE + 1 Uplink) |
| PoE Power Budget | 60W (Hi-PoE port 1: 60W, PoE ports 2–4: 30W max each) |
| Switching Capacity | 1.8 Gbps |
| Forwarding Rate | 0.744 Mpps |
| PoE Standards | IEEE 802.3af/at (ports 2–4), Hi-PoE (port 1) |
| Transmission Modes | Extend Mode (up to 250m, 10Mbps) or Normal Mode (100m, 100Mbps) |
| PoE Watchdog | Auto-restarts unresponsive PoE devices |
| Operating Temp | -10°C to 55°C |
| Power Input | 48–57V DC (via PoE or external adapter) |
| Dimensions | 130 × 85 × 26 mm |
| Weight | 0.3 kg |
Description
The DH-SF1005P is a compact, unmanaged Layer 2 switch designed for small to medium-sized networks. It has 5 ports: 4 PoE ports and 1 uplink port. PoE ports 2–4 provide up to 30W each, while port 1 supports Hi-PoE up to 60W, powering devices like IP cameras, access points, and VoIP phones.It features a PoE watchdog function to automatically restart unresponsive devices, reducing downtime. Two transmission modes are supported: Normal Mode for standard distances (100m, 100Mbps) and Extend Mode for long-distance coverage (up to 250m, 10Mbps).With a switching capacity of 1.8 Gbps and forwarding rate of 0.744 Mpps, it ensures smooth data handling. Its operating temperature range is -10°C to 55°C. The switch is desktop- or wall-mountable, making installation flexible for different setups.
