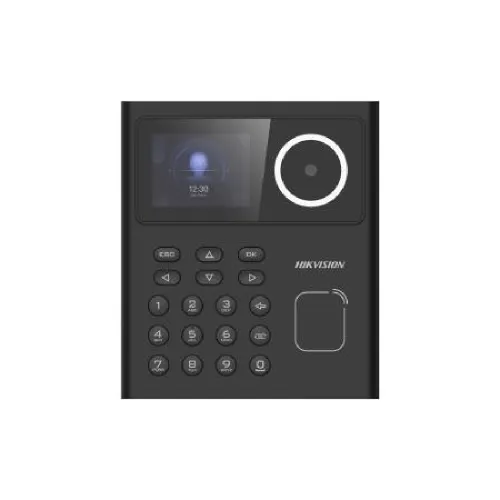

Hikvision DS-K1T320EX Face Recognition Access Control Terminal
Quick Details
- Model: DS-K1T320EX
- Display: 2.4-inch LCD Capacitive touchscreen
- Face Capacity: 500
- ID Card Capacity: 1000
- Record Capacity: 100,000
| Specification Category | Details |
| Model | Hikvision DS-K1T320EX |
| Display | 2.4-inch LCD Screen / Capacitive Touchscreen (320 x 240 resolution) |
| Camera Lens | 2 MP lens (video stream: 720P) |
| Authentication Methods | Face recognition, EM Card, PIN |
| Face Capacity | Max. 500 faces |
| Card Capacity | Max. 1,000 EM cards |
| Fingerprint Capacity | No (Note: Fingerprint is supported on MFWX/EFWX variants, not the base EX model) |
| Event Record Capacity | 100,000 logs |
| Face Recognition Speed | Under 0.2 seconds per user |
| Face Recognition Distance | 0.3 meters to 1.5 meters |
| Face Recognition Accuracy | > 99% |
| Access Control Interfaces | Lock Control, Door Contact Input, Exit Button, Alarm |
| Network & Protocols | Wired Network (10 M/100 M self-adaptive), ISAPI, and ISUP 5.0 protocols |
| Configuration | Web client configuration, Supports Push SDK |
| Security Features | Face anti-spoofing, Face duplicate check |
| Operating System | Linux |
| Power Supply | DC 12 V / ≤ 6 W consumption |
| Dimensions | 150 mm × 130 mm × 24.7 mm |
Description
Hikvision DS-K1T320EX Face Recognition Access Control Terminal
The Hikvision DS-K1T320EX is a sophisticated Face Recognition Access Control Terminal that combines a small size with a lot of power. The 2.4-inch LCD screen and high-resolution 2 MP lens give a clear and user-friendly interface, while the presence of numerous authentication methods including facial recognition, card scanning, and PIN entry which provides a versatile and safe access control solution. This terminal goes beyond traditional access control by supporting EM cards, giving your security policies an added degree of versatility. The DS-K1T320EX is a scalable and resilient alternative for companies with variable access demands, with an amazing ability to store up to 500 faces, 1,000 cards, and log 100,000 events. The DS-K1T320EX excels in terms of speed, with a facial recognition time of less than 0.2 seconds per user, providing quick and efficient access even in high-traffic settings. This terminal, which supports the ISAPI and ISUP 5.0 protocols, connects effortlessly into your current security architecture, providing a simplified and complete solution. The web client simplifies configuration by providing administrators with a user-friendly interface for customization. The Hikvision DS-K1T320EX Face Recognition Access Control Terminal is more than simply a security equipment; it's a comprehensive and efficient solution built to fulfill modern enterprises' diversified access control demands. Hikvision once again provides a cutting-edge option for those looking for dependable and user-friendly access with its small form, extensive functionality, and smooth integration possibilities.
