Hikvision DS-K1201AEF Fingerprint Reader
Quick Details
- Model: DS-K1201AEF
- Optical CMOS Fingerprint Module
- Max. 5000 fingerprints storage
- Built-in buzzer for status indication
- Supports EM card reading
| Main Features | |
| Fingerprint Capacity | Max. 5000 fingerprints storage |
| Interface | TAMPER: 1 |
| Others | A group of messy code encrypted data for the security of fingerprint storage Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol Supports EM card reading Card induction distance is 30 mm to 100 mm Supports multiple authentication modes (card, fingerprint, and card + fingerprint) Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint) Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001% Communication circuit is designed with optical coupling isolation and noise suppression function Built-in buzzer for status indication Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal Tamper-proof function |
| Physical Specification | |
| Dimension | 62 mm × 132 mm × 44 mm (2.44" × 5.20" × 1.73") |
| Power Supply | 12 VDC ± 10% |
| Manufacture Warranty | |
| Warranty | 1 Year |
Description

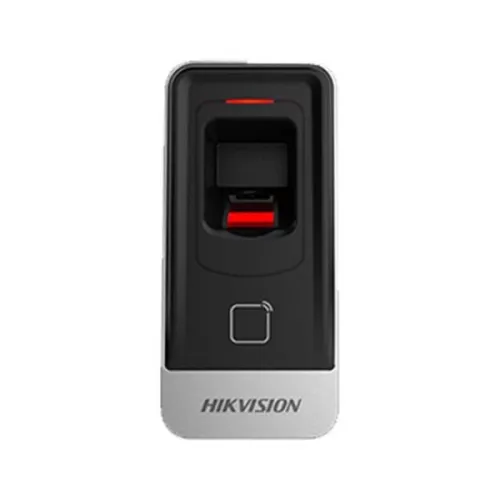

Hikvision DS-K1201AEF Fingerprint Reader
The Hikvision DS-K1201AEF fingerprint reader features an advanced optical CMOS fingerprint module. Ensures exact authentication by supporting several verification mechanisms, such as fingerprint, card, and card plus fingerprint authentication. The Hikvision DS-K1201AEF Fingerprint Reader can hold up to 5,000 fingerprints and features encrypted data storage for added protection. It supports both 1:N and 1:1 fingerprint comparison modes, resulting in fast and efficient identification with comparison times of less than one second for both 1:1 and 1:1000 matches. With a false rejection rate of less than 0.01% and a false acceptance rate of less than 0.001%, it ensures precise user verification. The Hikvision DS-K1201AEF Fingerprint Reader supports RS-485 communication at a rate of 19200bps-N-8-1 and has a CRC test for protocol validation, assuring reliable data transmission. The communication circuit incorporates optical coupling isolation and noise reduction to ensure reliable performance in a variety of settings. The built-in buzzer gives status indicators, improving the user experience. The gadget also has a tamper-proof feature to prevent unauthorized access and maintain system integrity. The Hikvision DS-K1201AEF Fingerprint Reader reads EM cards with an induction distance ranging from 30 mm to 100 mm, providing flexible authentication possibilities.
