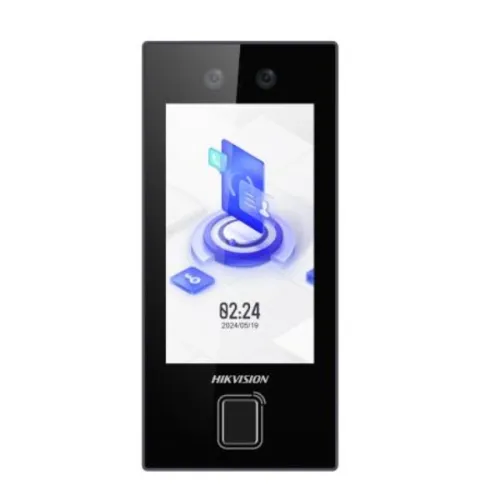

Hikvision DS-K1T344EBFWX-E1 Face Recognition Access Control
Quick Details
- Model: DS-K1T344EBFWX-E1
- 4.5-inch LCD Touch Screen, 2 Mega Pixel Wide-Angle Lens
- Max. 3000 faces, Max. 3000 fingerprints, and 3000 cards capacity
- Supports face, card, PIN, and Fingerprint Authentication
- Two-way Audio with Client Software, Indoor Station, and Main Station
| Main Features | |
| Fingerprint Capacity | Max.3000 fingerprints capacity |
| Face Capacity | Max.3000 faces capacity |
| ID Card Capacity | Max.3000 cards |
| Display | 4.5-inch LCD touch screen |
| Standard Functions | QR code recognition: Support scan QR code via camera Face anti-spoofing: Support Two-way audio: Support Audio prompt: Support Time synchronization: Support |
| Interface | Alarm input: 2 Alarm output: 1 PoE: IEEE802.3at, standard PoE Network interface: 1 RS-485: 1 Wiegand: 1, supports Wiegand input, single direction Lock control: 1 Exit button: 1 Door contact input: 1 TAMPER: 1 USB: 1 |
| Others | Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99% Supports face, card, PIN, and fingerprint authentication Two-way audio with client software, indoor station, and main station. Supports mobile web and PC web for configuration Supports powered by 12 VDC or PoE and supports powering for device and door lock |
| Physical Specification | |
| Dimension | 165.2 mm × 75.7 mm × 25 mm （6.5" × 2.98" × 0.98") |
| Power Supply | 12 VDC, 1 A, standard PoE |
| Others | Installation: Wall mounting Protective level: IP65 |
| Manufacture Warranty | |
| Warranty | 1 Year |
Description
Hikvision DS-K1T344EBFWX-E1 Face Recognition Access Control
The Hikvision DS-K1T344EBFWX-E1 is a high-performance face recognition access control terminal that improves security and efficiency in access management. The device has a 4.5-inch LCD touch screen with a resolution of 480 × 854, providing an easy user interface. Hikvision DS-K1T344EBFWX-E1 Face Recognition Access Control, which features a 2 MP wide-angle lens and an EM card reading module, offers a variety of authentication techniques, including face recognition, fingerprint scanning, card verification, and PIN authentication. Organizations that require scalable access control have a maximum capacity of 3,000 faces, 3,000 fingerprints, and 3,000 cards. The Hikvision DS-K1T344EBFWX-E1 Face Recognition Attendance Machine has a face recognition range of 0.3 to 1.5 meters, an accuracy rate of more than 99%, and a recognition time of less than 0.2 seconds per user. The client software, indoor stations, and main stations all offer two-way audio communication, which improves user interaction and security monitoring. The Hikvision DS-K1T344EBFWX-E1 Access Control provides both wired and wireless network connections, with a 10/100 Mbps self-adaptive network interface, Bluetooth, and Wi-Fi connectivity. Power options include 12 VDC or standard IEEE802.3at PoE, which allows for flexible installation while also delivering power to associated door locks. The Hikvision DS-K1T344EBFWX-E1 Face Recognition Access Control has a variety of interfaces, including two alarm inputs, one alarm output, RS-485, a Wiegand input for one-way communication, lock control, an exit button, a door contact input, a tamper alarm, and a USB connection. It has an event storage capacity of up to 150,000 records, ensuring consistent data preservation.
