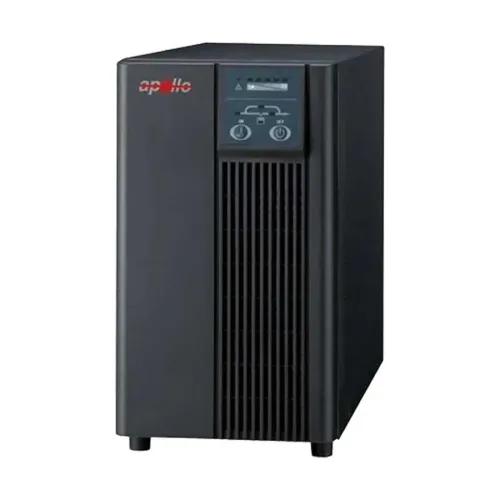

Apollo 2B6K 6KVA Standard Backup Online UPS
Quick Details
- Model: 2B6K
- Capacity: 6kVA
- Input Voltage: 110 V -220 V, Output Voltage: 220V
- Topology: Online
- Short Circuit, Overload and Overcharge Protection
| Main Feature | |
| Capacity | 6KVA |
| Display Type | LCD |
| Input Voltage | 110VAC±20%/220VAC±25% |
| Output Voltage | 110V±1%/220V±1% |
| Noise Level | <58dB at 1 meter |
| Battery | Battery Backup: 15 to 20 Min (Depends on Load) |
| Alarm | AC fault, Battery low voltage, UPS over load, UPS fault |
| Others | Protection: Overload, Battery, Short circuit, Over temperature, EMI filter Interface: RS232 Temperature: 0℃~40℃ Humidity: 20~90% No condensing |
| Input Features | |
| Frequency | 60Hz±5%/50Hz±5% |
| Voltage Range | 110VAC±20%/220VAC±25% |
| Output Features | |
| Voltage Range | 110V±1%/220V±1% |
| Power Factor | 0.8-1 LAG |
| Type of Wave | Sine wave |
| Transfer Time | AC fault: 0ms UPS fault: <2ms |
| Physical Specification | |
| Dimension | 585x230x580mm |
| Weight | 126 kg |
| Manufacture Warranty | |
| Warranty | 1 Year (Box Mandatory While Claiming) Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
Apollo 2B6K 6KVA Standard Backup Online UPS
The Apollo 2B6K 6KVA Standard Backup Online UPS is a powerful Apollo 2B6K Online UPS that is built for dependability and efficiency in essential applications. The Apollo 2B6K 6KVA Online UPS has a wide input voltage range of 110VAC±20% / 220VAC±25% and a reliable output of 110V±1% / 220V±1% to provide constant power. The Apollo 2B6K UPS produces a clean sine wave output with a 3:1 crest factor, with frequency control of 60Hz±0.5% / 50Hz±0.5% (free running) and THD levels below 5% for non-linear loads. The Apollo 2B6K 6KVA UPS has an AC-to-AC efficiency of over 85%, optimizing power usage. Its 192V battery system (12V/7Ah × 16 pcs) provides prolonged backup with zero transfer time during AC failures. The Apollo Online UPS has overload protection that switches to bypass mode at 125% load with auto-restart after 25 seconds, as well as circuit breakers for battery and short-circuit protection. Overheating above 85°C results in an automated bypass, assuring safe operation. The Apollo 2B6K Online UPS has a sophisticated alarm system that includes periodic alerts for AC failures, continuous overload warnings, and LED indications for system condition. Its noise level remains below 58dB at 1 meter, making it acceptable for a variety of situations. The LED and LCD displays give real-time monitoring of input/output voltage, battery capacity, load capacity, frequency, and temperature, while RS232 connectivity allows for remote monitoring of important power parameters. The Apollo 2B6K 6KVA Standard Backup Online UPS measures 585 × 230 × 580mm and weighs 126 kg. It is the ideal power backup solution for mission-critical systems, assuring continuous operation and optimum uptime.
