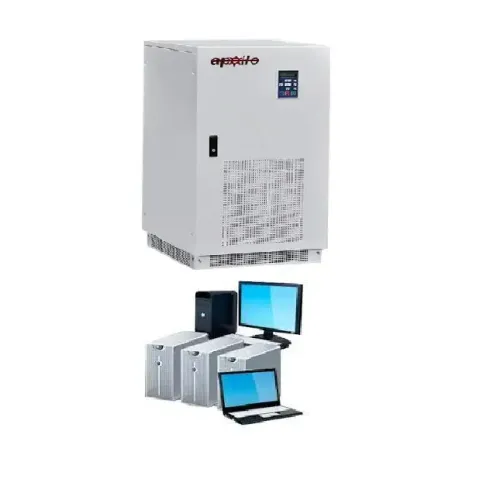

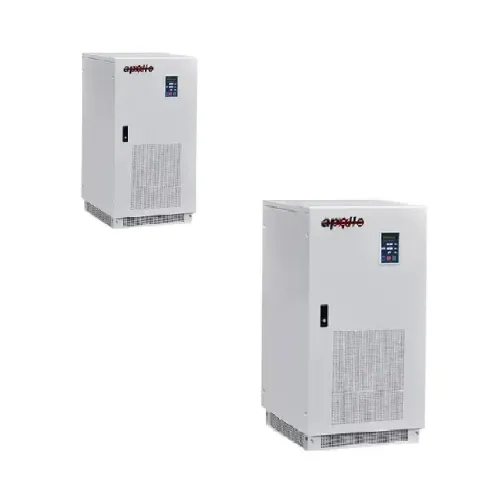

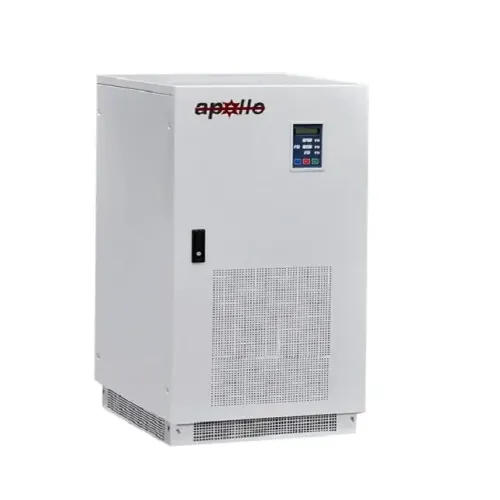

Apollo 2B15K-L 15KVA Long Backup Online UPS
Quick Details
- Model: 2B15K-L
- Capacity: 15KVA / 13.5KW
- Input Voltage: 380/400/415V AC
- Topology: Online
- Short Circuit, Overload and Overcharge Protection
| Main Feature | |
| Capacity | 15KVA |
| Display Type | LCD |
| Load Capacity | 13.5 KW |
| Input Voltage | 380/400/415Vac (380-25% 415+20%), (3Ph+N+PE) |
| Noise Level | <60dB |
| Battery | Battery voltage: 384Vdc |
| Others | Display LED: Input, Inverter, Bypass, Battery, Output, Status LCD: I/O voltage, frequency, power factor, battery voltage, current, battery status, load percentage, UPS status, history record Operating frequency range: 50/60Hz (±5Hz) Output frequency: 50/60Hz (± 0.05%) Power: >0.9(with filter) Interface: Dry contact, RS232, RS485, SNMP card (Optional) Harmonic distortion (THD) <3% (linear load) Crest factor 3:1 (Max.) Rated frequency: 50/60Hz Transfer time: Oms (Line mode ↔ Battery mode) Harmonic filter, SNMP adapter, LBS cables, battery temperature sensor, Bypass current-sharing inductor Special Features: Voltage protection range: Upper limit: +20% (+10%, +15%, +20% adjustable) Lower limit: -40%, -20%, -30%, -40% adjustable) Frequency protection range: ± 10% (±2.5%, ±5%, ±10%, ±20% adjustable) |
| Input Features | |
| Voltage Range | 380/400/415Vac (380-25% 415+20%), (3Ph+N+PE) |
| Output Features | |
| Voltage Range | 200/220/230Vac (± 1%) |
| Transfer Time | 0 ms (Line mode ↔ Battery mode) |
| Physical Specification | |
| Dimension | 570 x 800 x 1195mm |
| Weight | 217kg |
| Manufacture Warranty | |
| Warranty | 1 Year (Box Mandatory While Claiming) Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
Apollo 2B15K-L 15KVA Long Backup Online UPS
The Apollo 2B15K-L 15KVA is a powerful Apollo Online UPS built for essential applications that need continuous power and outstanding protection. This Apollo 2B15K-L 15KVA Online UPS boasts a powerful 15KVA/13.5KW capacity, delivering stable backup power with an efficiency of over 89%. With an input voltage range of 380/400/415Vac (tolerance of -25% to +20%), it produces a steady output voltage of 200/220/230Vac (±1%) and a frequency stability of 50/60Hz (±0.05%). The Apollo 2B15K-L Online UPS runs with a 384Vdc battery system, guaranteeing prolonged backup periods, while the 0ms transfer time provides a quick transition between line and battery mode. This Apollo 2B15K-L UPS is fitted with an innovative LED and LCD display, allowing real-time monitoring of input/output voltage, frequency, power factor, battery voltage, current, load %, UPS status, and historical data. It offers numerous communication interfaces, including RS232, RS485, and an optional SNMP card, enabling simple integration into network setups. The Apollo 2B15K-L 15KVA UPS comes with sophisticated protection mechanisms, including an adjustable voltage protection range (upper limit: +20%, lower limit: -40%) and frequency protection (±10%, adjustable up to ±20%), guaranteeing stable operation in changing power situations. With minimal harmonic distortion (<3% for linear loads) and a crest factor of 3:1, this Apollo UPS is excellent for delicate electrical equipment. Built to work in different settings, the Apollo 2B15K-L 15KVA supports an operating temperature of 0~40°C, a storage temperature of -25°C to 55°C, and an altitude range of <1500m. The small but solid construction (570 x 800 x 1195mm) and a net weight of 217kg make it a trustworthy solution for enterprises wanting a powerful Apollo 2B15K-L 15KVA Online UPS. It conforms with IEC/EN62040-1 and IEC/EN60950-1 safety requirements, assuring dependability and durability. Optional accessories, such as a harmonic filter, SNMP adapter, battery temperature sensor, and bypass current-sharing inductor, further enhance the functionality of this Apollo 2B15K-L 15KVA Long Backup Online UPS, making it the perfect choice for organizations seeking an efficient, long-duration Apollo Online UPS solution.
