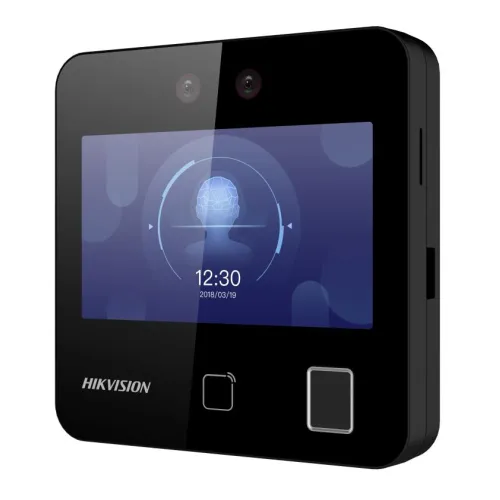

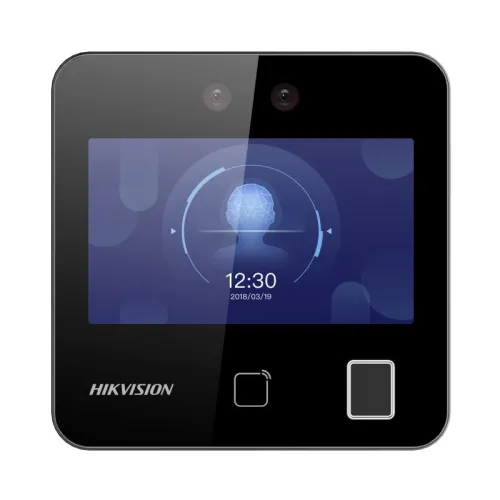

Hikvision DS-K1T343EFWX Face Recognition Access Control Terminal
Quick Details
- Model: DS-K1T343EFWX
- Display: 4.3-inch LCD screen, 2 MP wide-angle lens
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Supports ISAPI, ISUP5.0, & Face recognition. Distance: 0.3 m to 1.5 m
- Two-way audio with client software, indoor station, & main station; Supports TCP/IP, Wi-Fi
14,500৳
0.0৳
| Feature Category | Specification / Details |
| Model | Hikvision DS-K1T343EFWX (Value Series Face Access Terminal) |
| Display Screen | 4.3-inch LCD capacitive touch screen |
| Camera / Lens | 2 MP wide-angle lens |
| Face Capacity | Up to 1,500 face templates |
| Fingerprint Capacity | Up to 3,000 fingerprint records |
| Card Capacity | Up to 3,000 EM cards (125 KHz) |
| Event / Log Capacity | Up to 150,000 event logs |
| Face Recognition Performance | Distance: 0.3 m to 1.5 m; Duration: < 0.2 s/user; Accuracy rate: ≥ 99% |
| Authentication Modes | Face, fingerprint, EM card, and multi-factor combinations |
| Network & Communication | TCP/IP, Wi-Fi (2.4 GHz), ISAPI, ISUP 5.0, Push SDK |
| Audio | Two-way audio with noise suppression and echo cancellation |
| Interfaces | RJ-45, lock control, exit button, door contact, tamper, RS-485, Wiegand, USB |
| Operating System | Linux-based system |
| Power Supply | 12 VDC, 1A |
| Operating Temperature | -10 °C to 40 °C (14 °F to 104 °F) |
| Management Software | Hik-ProConnect, HikCentral Professional, and Web Client |
Description
Hikvision DS-K1T343EFWX Face Recognition Access Control Terminal
The Hikvision DS-K1T343EFWX is an advanced face recognition access control terminal designed to deliver high security and efficiency. This terminal supports a robust capacity of up to 1500 faces, 3000 fingerprints, and 3000 card registrations, making it ideal for various applications such as corporate buildings, educational institutions, and residential complexes. It features a user-friendly 4.3-inch LCD touchscreen and a 2-megapixel wide-angle lens, ensuring clear facial image capture. The built-in EM card reading module offers an additional layer of versatility in access control. Equipped with two-way audio communication capabilities, the DS-K1T343EFWX allows seamless interaction through client software, indoor stations, and main stations. This feature enhances verification processes and the overall user experience. The terminal supports both TCP/IP and Wi-Fi connections, ensuring reliable integration with existing network infrastructures. It adheres to ISAPI and ISUP5.0 protocols, offering flexible integration with other systems. The Hikvision DS-K1T343EFWX provides convenient setup and management via a web client, allowing for remote configuration and monitoring. The face recognition function operates effectively within a distance range of 0.3 meters to 1.5 meters and recognizes faces in less than 0.2 seconds per user, ensuring quick and efficient access. With an impressive accuracy rate of ≥ 99%, this terminal minimizes the risk of unauthorized access, enhancing security. Combining high performance and advanced technology, the Hikvision DS-K1T343EFWX is a reliable solution for modern access control needs, suitable for a wide range of security applications.
