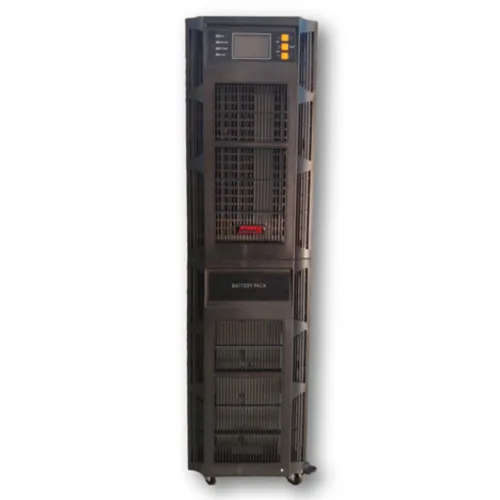

Power Guard 6KVA 6000VA 6000W Online UPS
Quick Details
- Model: PG 6 KVA ONLINE UPS (S)
- Load Capacity: 6000VA / 6000W / 5400W / 4800W
- Input Voltage: 200/208/220/230/240VAC
- Output Voltage: 200/208/220/230/240VAC
- Power management from SNMP manager
146,500৳
0.0৳
| Main Feature | |
| Capacity | 6000VA |
| Load Capacity | 6000W / 5400W / 4800W |
| Input Voltage | Nominal Voltage: 200/208/220/230/240VAC Frequency Range: 46Hz-54Hz / 56Hz-64Hz Phase: Single phase with ground Power Factor: R0.99 @ nominal voltage (100% load) |
| Output Voltage | AC Voltage Regulation (Batt. Mode): 2% Current Crest Ratio: 3:01 Frequency Range (Batt. Mode): 50 Hz 0.2 Hz or 60 Hz 0.2 Hz Frequency Range (Synchronized Range): 46 ~ 54 Hz or 56 ~ 64 Hz Harmonic Distortion: Q4 % THD (Linear Load) Q 6 % THD(For Full RCD Load,PF=0.8) Output Voltage: 110/115/120/127 VAC or 208/220/230/240 VAC Transfer Time: Line mode to Battery mode Zero Waveform (Batt. Mode): Pure Sine Wave |
| Battery | Battery Type: 12 V / 8.2 AH Numbers: 16 Typical Recharge Time: 6 hours recovery to 90% capacity Charging Current (max.): 1.0A/2.0A/4.0 A/6.0A DC Voltage: 192 VDC |
| Alarm | Battery Mode: Sounding every 4 seconds Low Battery: Sounding every second Overload: Sounding twice every second Fault: Continuously sounding |
| Indications | LED Panel: UPS status, Load level, Battery level, Input/Output voltage, and Fault conditions |
| Others | Optional SNMP: Power management from SNMP manager and web browser |
| Physical Specification | |
| Dimension | 260*642 *582mm |
| Manufacture Warranty | |
| Warranty | 1-Year Battery Warranty Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
Power Guard 6KVA 6000VA 6000W Online UPS
The Power Guard 6KVA 6000VA 6000W Online UPS is a reliable and high-capacity solution that ensures uninterrupted power supply for important systems. It provides sufficient backup power with a load capacity of 6000VA or 6000W and a range of load capabilities, including 5400W and 4800W. The Power Guard 6KVA 6000VA 6000W Online UPS maximizes energy efficiency and lowers operating expenses by delivering 93% in AC mode and 87% in battery mode. It operates with exceptional efficiency. Compatibility with a range of power sources is ensured by its single-phase architecture with ground and a wide input frequency range of 46Hz-54Hz / 56Hz-64Hz. With sixteen 12V/8.2AH batteries, the Power Guard 6KVA 6000VA Online UPS ensures rapid recovery with a normal recharge time of 6 hours to 90% capacity. With its LED indications, the online UPS allows for easy control by providing full monitoring of fault conditions, input/output voltage, load level, battery level, and UPS status. Users can respond to possible problems more quickly thanks to the Power Guard 6000VA Online UPS's alarm features, which quickly alert users of battery mode, low battery, overload, and defects. It easily interfaces with Windows, Linux, and MAC systems and supports Smart RS-232 administration, enabling extensive monitoring and control. SNMP is optional. High capacity, efficiency, and cutting-edge management capabilities make the Power Guard 6KVA Online UPS a great option for protecting vital equipment in a variety of challenging settings.
