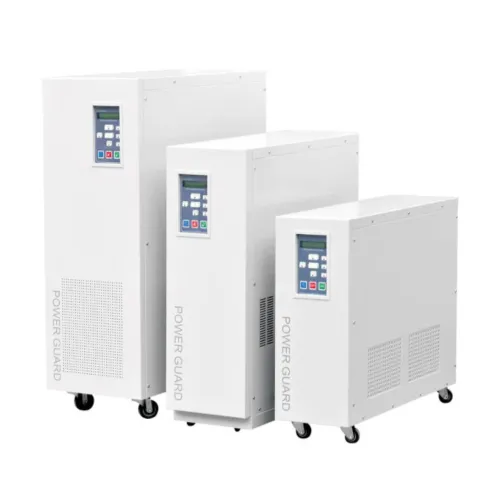

KSTAR GP806H 6KVA Standard Backup Online UPS Without Battery
Quick Details
- Model: GP806H
- Capacity: 6KVA
- Load Capacity: 4.8 kW
- Input Voltage: 160-265 VAC
- Backup Time: Up to 15 Minutes
85,200৳
0.0৳
| Main Feature | |
| Capacity | 6KVA |
| Display Type | LCD |
| Load Capacity | 4.8 kW |
| Input Voltage | 160-265 VAC |
| Output Voltage | 220VAC + 1% |
| Frequency (Battery Mode) | 50Hz, + 5% |
| Noise Level | 50 dBA at 1 meter |
| Alarm | Yes |
| Input Features | |
| Voltage Range | 160-265 VAC |
| Output Features | |
| Voltage Range | 220VAC + 1% |
| Power Factor | 0.9 |
| Transfer Time | 0ms |
| Manufacture Warranty | |
| Warranty | 1 Year Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
KSTAR GP806H 6KVA Standard Backup Online UPS
The KSTAR GP806H 6KVA Online UPS provides 6KVA power and 4.8kW rated output, stable performance for demanding electrical loads. KSTAR 6KVA Online UPS supports an input voltage range of 160 to 265VAC and delivers precise 220VAC output with plus minus one percent accuracy. KSTAR Online UPS maintains a stable frequency of 50Hz with plus minus five percent tolerance, consistent operation for connected devices. KSTAR GP806H 6KVA Standard Backup Online UPS offers up to fifteen minutes backup time and charges fully within six to eight hours. KSTAR 6KVA Online UPS includes RJ45 communication port and SNMP option for remote monitoring, control, and alarm signaling. KSTAR GP806H 6KVA UPS ensures seamless power delivery with zero millisecond transfer time and automatic or manual bypass switching for maintenance. KSTAR 6KVA UPS achieves up to ninety nine percent efficiency with input power factor above zero point ninety two and output power factor zero point nine. KSTAR Online UPS supports synchronization and uses P plus N plus E input and output phases for reliable electrical configuration. KSTAR GP806H 6KVA Standard Backup Online UPS includes advanced protections like overload, short circuit, voltage surge, RF noise, and temperature control. KSTAR Online UPS also protects against battery overcharge, low battery conditions, synchronization failure, and abnormal input or output voltage levels. KSTAR 6KVA Online UPS operates within zero to forty degrees Celsius and up to ninety five percent non condensing humidity. KSTAR GP806H 6KVA UPS features SMF battery type, external rack, IP20 protection, and optimized charging voltages with controlled current for safe operation.
