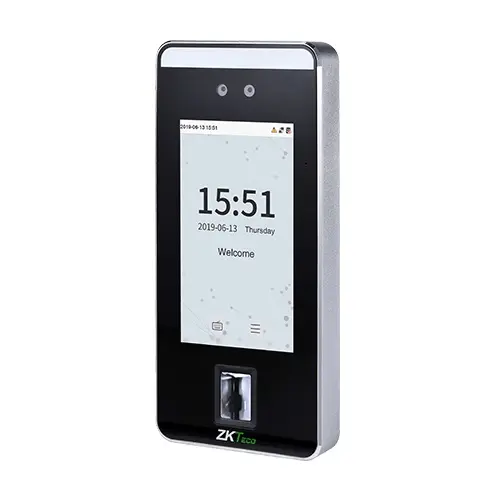

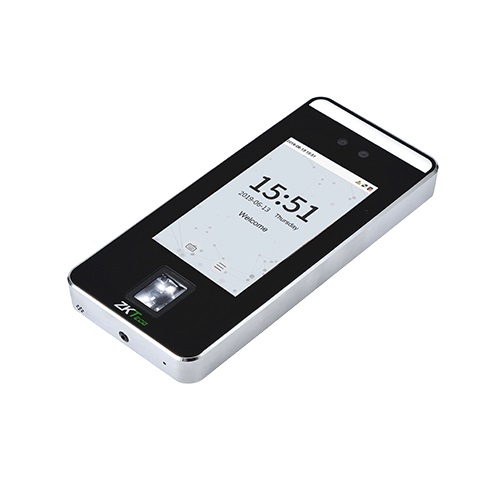

ZKTeco SpeedFace-V5L Biometric Time Attendance and Access Control Terminal
Quick Details
- Model: SpeedFace-V5L
- Capacity: Face 6,000; ID Card 10,000
- 5-inch Touch Screen Display
- Fingerprint Capacity: 6,000 (Standard)
- 2MP WDR Low Light Camera
28,500৳
0.0৳
| Model | ZKTeco SpeedFace-V5L |
| Device Type | Hybrid Biometric Time Attendance & Access Control Terminal |
| Display | 5-inch ISP Color LCD Touch Screen, 720 × 1280 |
| Camera | 2MP Binocular WDR Camera |
| Operating System | Linux |
| CPU | Quad Core A55 @ 1.2 GHz |
| RAM | 512 MB; 1 GB optional for Palm |
| ROM / Storage | 8 GB |
| Fingerprint Capacity | 10,000 templates (1:N) |
| Face Capacity | 10,000 templates (1:N) |
| Palm Capacity | 3,000 templates (1:N), optional |
| Card Capacity | 10,000 cards |
| User Capacity | 10,000 users |
| Transaction Capacity | 200,000 records |
| Authentication Methods | Face / Fingerprint / Palm / Card / Password |
| Fingerprint Sensor | Z-ID |
| Face Recognition Speed | < 0.35 sec |
| Fingerprint Verification Speed | < 0.5 sec |
| Palm Verification Speed | < 0.35 sec |
| Face Recognition Distance | 30–170 cm |
| Palm Recognition Distance | 15–40 cm |
| Face FAR | ≤ 0.01% |
| Fingerprint FAR | ≤ 0.0001% |
| Palm FAR | ≤ 0.01% |
| Face FRR | ≤ 0.02% |
| Fingerprint FRR | ≤ 0.01% |
| Palm FRR | ≤ 0.17% |
| Card Support | 125 kHz ID Card / 13.56 MHz IC Card, depending on module |
| QR Code | Dynamic QR via ZKBio CVAccess mobile app; optional |
| Communication | TCP/IP, Wiegand Input/Output, RS485 |
| Wi-Fi | Optional, 2.4 GHz / 5 GHz |
| Access Control | Electric Lock, Door Sensor, Exit Button, Alarm, Auxiliary Input/Output |
| Access Control Interface | RS485 / ZKTeco RS485 |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Tamper Alarm, Multiple Verification |
| User ID | Up to 14 digits |
| Virtual Keypad | 16 Keys |
| Supplement Light | Yes |
| Video Intercom | Supported |
| ONVIF | Supported as optional function |
| Power Supply | DC 12V / 3A |
| Operating Temperature | -10°C to 45°C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Installation | Wall Mount |
| Dimensions | 202.93 × 91.93 × 21.5 mm (L × W × H) |
| Net Weight | Approx. 0.6 kg |
| Gross Weight | Approx. 1.3 kg |
| Supported Software | ZKBio CVAccess, ZKBio Time, ZKBio Zlink |
| Certifications | ISO 14001, ISO 9001, CE, FCC |
Description
ZKTeco SpeedFace-V5L Biometric Time Attendance and Access Control Terminal
The ZKTeco SpeedFace-V5L is a Linux-Based Hybrid Biometric Time & Attendance and Access Control Terminal with Visible Light Facial Recognition. It features Visible Light Facial Recognition, Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack. It supports multiple verification methods such as Face, Fingerprint, Card, Password. 125KHz ID card (EM) / 13.56MHz IC card modules are available It features Supplement lighting with adjustable brightness. It has a capacity of 6,000 face templates, 6,000 Fingerprint (Standard) and ID Card Capacity of 10,000 users. It has a Log Capacity of 200,000. It comes with a 5-inch Touch Screen Display and a 2MP WDR Low Light Camera. It has a 1-year warranty.
