ZKTeco SenseFace 7B Access Control Terminal
Quick Details
- Model: SenseFace 7B
- Face Template Capacity: 10,000 (1:N)
- User & Card Capacity: 50,000 (1:N) (Standard)
- Transaction Capacity: 300,000 (1:N)
- Display: 7" TFT Color Touch LED Screen (600*1024)
28,500৳
0.0৳
| Main Features | |
| Face Capacity | 10000 |
| ID Card Capacity | 50000 |
| Display | 7" Touch LED Screen |
| Communication | TCP/IP*1, Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional), Wiegand (Input or Output)*1 RS485: ZKTeco RS485*1, USB: Type A (USB Drive Only)*1 Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1 |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input) |
| Interface | RS485 (RS485 Card Reader / Biometric Reader) |
| Others | Camera: WDR Binocular Camera @ 1MP Operation System: Linux Hardware: CPU: Dual Core@1GHz RAM: 512MB; ROM: 8GB Speaker: 8 ohm@1 W Microphone: *1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: -32dB / Impedance: 2.2kΩ) |
| Physical Specification | |
| Dimension | 214mm * 115mm * 22.3mm (L*W*H) |
| Weight | 0.622 Kg |
| Power Supply | DC 12V 3A (Optional) |
| Manufacture Warranty | |
| Warranty | 1 Year (Without Adapter) |
Description
ZKTeco SenseFace 7B Access Control Terminal

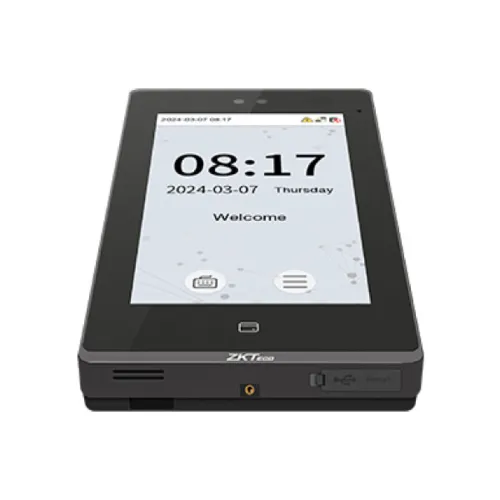

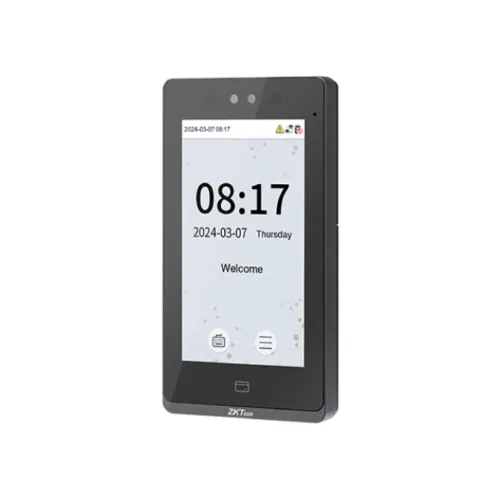

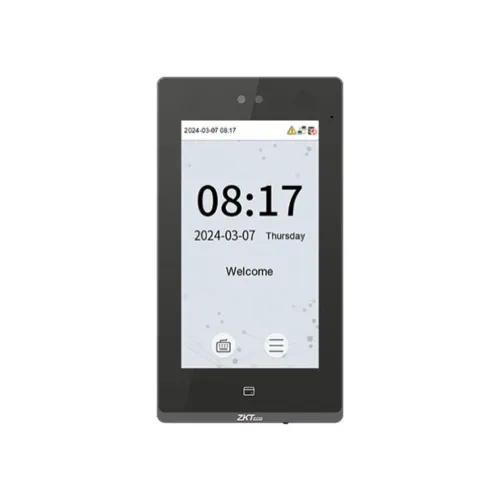

The ZKTeco SenseFace 7B Access Control Terminal delivers advanced facial recognition and multi-method authentication for modern security environments. This ZKTeco Access Control solution features a 7-inch TFT Color Touch LED screen at 600x1024 resolution for intuitive daily operation.
A WDR Binocular Camera at 1MP supports touchless facial authentication from 30cm to 200cm distance. The ZKTeco Biometric Attendance Machine authenticates users in under 0.35 seconds using the ZKFace V4.0 algorithm. False Acceptance Rate stays at or below 0.01% and False Rejection Rate at or below 0.02% for reliable accuracy.
This ZKTeco SenseFace 7B Access Control supports face, card, and password authentication via a virtual keypad. Face template capacity reaches 10,000 users while card and user capacity each reach 50,000 for large deployments. Transaction log capacity stores up to 300,000 records for comprehensive access event management. The system runs on Linux with a dual-core 1GHz CPU, 512MB RAM, and 8GB ROM for smooth performance.
ID card support covers 125kHz standard cards and optional 13.56MHz IC cards for flexible compatibility. TCP/IP, optional Wi-Fi IEEE802.11b/g/n/ax, RS485, Wiegand input or output, and USB Type-A provide comprehensive connectivity. This ZKTeco Attendance Machine supports SIP 2.0 video intercom and ONVIF Profile compatibility for integrated security systems.
Standard functions include Anti-Passback, Access Levels, Groups, Holidays, Schedule Bell, and Tamper Switch Alarm. This ZKTeco SenseFace 7B Access Control has ADMS, HTTPS, SSH backend access, and AC Push and TA Push protocol switching add advanced management capabilities. IP65 protection rating ensures dustproof and waterproof operation for indoor and outdoor installation environments.
Compatible software includes ZKBio CVSecurity, BioTalk Pro, and cloud-based ZKBio Zlink with web and mobile app support. Wall-mount installation suits Asian Gang-box and Single Gang-box configurations for flexible placement. The ZKTeco SenseFace 7B Access Control Terminal carries ISO9001, ISO14001, CE, FCC, and RoHS certifications for global compliance.
