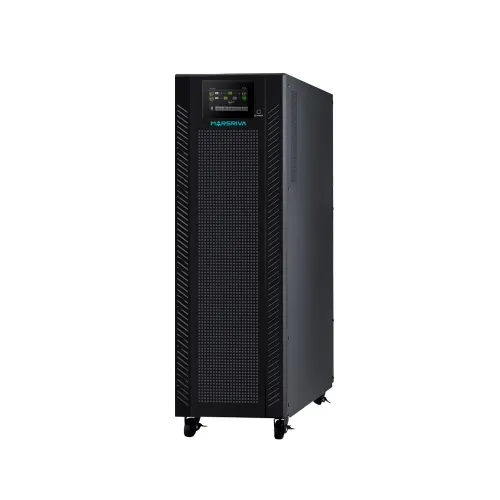

Marsriva MR-US3320K-H Energy Efficient 20kVA Online UPS
Quick Details
- Model: MR-US3320K-H
- Rated Capacity: 20kVA / 20kW
- Output Voltage: 3 x 360*/380*/400/415 VAC (3Ph+N)
- Topology: Online
- Parallel Capability: up to 4 units
216,000৳
0.0৳
| Main Feature | |
| Capacity | 20kVA |
| Load Capacity | 20kW |
| Input Voltage | 3 x 400VAC (3Ph+N) / 230VAC (1Ph+N) |
| Output Voltage | 3 x 360*/380*/400/415 VAC (3Ph+N) |
| Frequency (Battery Mode) | 50Hz ± 0.1 Hz or 60Hz ± 0.1 Hz |
| Others | Output Harmonic Distortion (THDi): ≤2% THD (Linear Load) ; ≤5 % THD (Non-linear Load) Output Overload Capability: 100 – 110% for 60min, 111 – 125% for 10min, 126% – 150% 1min, ＞150% immediately Input Harmonic Distortion (THDi): ＜4% at full linear load |
| Input Features | |
| Frequency | 46 – 54Hz @ 50Hz system; 56 – 64Hz @ 60Hz system |
| Power Factor | ≥0.99 @ 100% Load |
| Voltage Range | 110 – 300VAC ± 3 % @ 50% load; 176 – 276VAC ± 3 % @ 100% load |
| Output Features | |
| Type of Wave | Pure Sine wave |
| Transfer Time | AC Mode to Batt. Mode: 0ms Inverter to Bypass: 0ms |
| Manufacture Warranty | |
| Warranty | 01-year warranty Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
Marsriva MR-US3320K-H Energy Efficient 20kVA Online UPS
The Marsriva MR-US3320K-H Energy Efficient 20kVA Online UPS is a reliable and versatile power system designed for critical applications. With a rated capacity of 20kVA / 20kW, this UPS provides stable and uninterrupted power to sensitive and high-demand equipment. The MR-US3320K-H 20kVA Online Marsriva UPS supports parallel operation with up to four units, making it scalable for larger systems or redundancy needs. It offers three-phase output voltages of 360/380/400/415 VAC (3Ph+N), with precise voltage regulation of ±1% in battery mode for consistent performance during power fluctuations. The MR-US3320K-H Marsriva UPS delivers a pure sine wave output with low harmonic distortion, ensuring optimal performance for both linear (≤2% THD) and non-linear loads (≤5% THD). This energy-efficient online UPS ensures seamless operation with a 0ms transfer time between AC and battery modes, guaranteeing uninterrupted power. Its wide input voltage range accommodates 110–300 VAC at 50% load and 176–276 VAC at 100% load, making it adaptable to various environments. The system operates with a high power factor of ≥0.99 and maintains low input harmonic distortion (＜4% THDi), reducing energy loss and equipment wear. With precise frequency control at 50Hz ± 0.1Hz or 60Hz ± 0.1Hz in battery mode, the MR-US3320K-H 20kVA Online UPS ensures stable and reliable power delivery. Additionally, its overload handling capabilities allow it to support up to 150% load for short durations, protecting connected systems from sudden power spikes. Ideal for data centers, industrial facilities, and other critical applications, the Marsriva MR-US3320K-H Energy Efficient 20kVA Online UPS offers unmatched reliability and performance.
