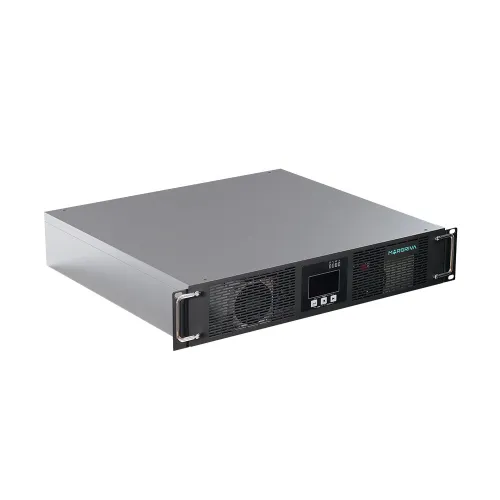

Marsriva MR-US3KRT Energy Efficient 3kVA Online UPS
Quick Details
- Model: MR-US3KRT
- Capacity: 3kVA / 3kW
- Output Voltage: 208V - 240V AC
- Topology: Online
- Short circuit, Overload, Overcharge and Over-discharge protection
| Main Feature | |
| Capacity | 3kVA |
| Display Type | IPS |
| Load Capacity | 3kW |
| Input Voltage | 110 – 300VAC, 110 – 176VAC, 280 – 300VAC (power limited) |
| Output Voltage | 208 / 220 / 230 / 240VAC |
| Others | AC Mode: Full load 95.5%@220VAC Battery Mode: Full load 91.5%@96VDC |
| Input Features | |
| Frequency | 50 / 60 ± 6Hz (Default), ±10Hz (Adjustable) |
| Power Factor | ≥0.99 |
| Voltage Range | 110 – 300VAC, 110 – 176VAC, 280 – 300VAC (power limited) |
| Output Features | |
| Voltage Range | 208 / 220 / 230 / 240VAC |
| Power Factor | 1.0 |
| Type of Wave | Pure Sine wave |
| Transfer Time | AC Mode to Battery Mode 0ms, Inverter to Bypass 4ms(Typical) |
| Manufacture Warranty | |
| Warranty | 01-year Warranty Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
Marsriva MR-US3KRT Energy Efficient 3kVA Online UPS
The Marsriva MR-US3KRT 3kVA Online UPS is a robust uninterruptible power supply (UPS) that delivers high energy efficiency, dependability, and power protection for sensitive equipment. The Marsriva MR-US3KRT Online UPS, with a rated capacity of 3kVA / 3kW, provides constant and clean power with a pure sine wave output. It has a revolutionary high-frequency double-conversion design with DSP control, resulting in up to 95.5% energy efficiency while significantly cutting power consumption and operational costs. The Marsriva MR-US3KRT UPS supports 208/220/230/240V AC output voltages and a frequency range of 50/60Hz ± 0.1%. The output harmonic distortion is ≤3% for linear loads and ≤5% for non-linear loads. Its output power factor is 1.0, ensuring efficient power use. The Marsriva MR-US3KRT offers a 0ms switching time from AC mode to battery mode and a 4ms transition from inverter to bypass, reducing downtime. The machine also has a wide input voltage range of 110-300V AC, allowing it to operate successfully even in uncertain power circumstances. In addition, the Marsriva MR-US3KRT Online UPS has intelligent battery management, which provides temporary battery power during outages as well as real-time power condition warnings. The simple control panel allows for immediate knowledge of the Marsriva UPS status, while serial interface ports offer easy management and monitoring. The UPS's longevity is enhanced by the automated self-test function and simple recovery from overloads, as well as the economical operating mode, which helps optimize energy usage. The Marsriva MR-US3KRT UPS is ideal for small enterprises and important applications since it improves application availability while also providing a strong, stable power solution. Choose the Marsriva MR-US3KRT Online UPS for effective power management in sensitive situations.
