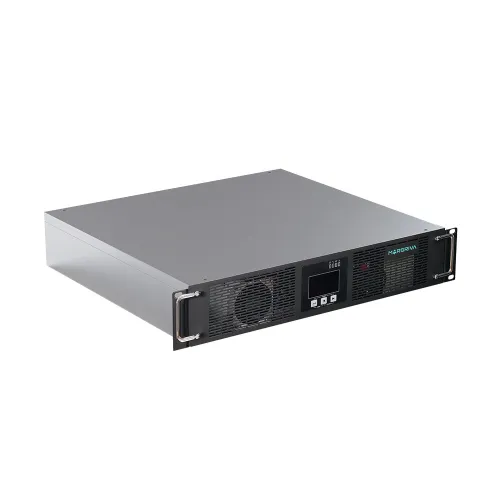

Marsriva MR-US10KRT-H Energy Efficient 10kVA Online UPS
Quick Details
- Model: MR-US10KRT-H
- Capacity: 10kVA / 10kW
- Output Voltage: 208V ~ 240VAC
- Topology: Online
- Short circuit, Overload, Overcharge and Over-discharge protection
| Main Feature | |
| Capacity | 10kVA |
| Display Type | IPS |
| Load Capacity | 10kW |
| Input Voltage | 110 – 300VAC, 110 – 176VAC, 280 – 300VAC (power limited) |
| Output Voltage | 208 / 220 / 230 / 240VAC |
| Others | AC Mode: Full load efficiency 95%, Maximum efficiency 95.5% Battery Mode: Full load effciency 94.8%(20pcs batteries), Maximum efficiency 95.3% |
| Input Features | |
| Frequency | 50 / 60 ± 6Hz (Default), ±10Hz (Adjustable) |
| Power Factor | ≥0.99 |
| Voltage Range | 110 – 300VAC, 110 – 176VAC, 280 – 300VAC (power limited) |
| Output Features | |
| Voltage Range | 208 / 220 / 230 / 240VAC |
| Power Factor | 1.0 |
| Type of Wave | Pure Sine wave |
| Transfer Time | 0ms.ECO Mode to Battery Mode 2ms |
| Manufacture Warranty | |
| Warranty | 01-year Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
Marsriva MR-US10KRT-H Energy Efficient 10kVA Online UPS
The Marsriva MR-US10KRT-H Energy Efficient 10kVA Online UPS is a robust and highly efficient power solution. It is designed to meet the demands of modern electrical systems. It comes with a 10kW load capacity, this Marsriva Online UPS is ideal for applications that require a reliable and continuous power supply and ensure uninterrupted performance for critical operations. The Marsriva MR-US10KRT-H Online UPS supports a wide input voltage range of 110–300VAC, with specific modes optimized for lower (110–176VAC) and higher (280–300VAC) voltages, offering unparalleled flexibility and adaptability to varying power conditions. Its advanced IPS display provides a user-friendly interface for real-time monitoring and control of system parameters. This MR-US10KRT-H Online UPS delivers output voltages of 208/220/230/240VAC, featuring a pure sine wave output to ensure compatibility with sensitive electronic devices while reducing the risk of equipment damage. In AC mode, it achieves an impressive full load efficiency of 95%, reaching a maximum efficiency of 95.5%, minimizing energy loss significantly. In battery mode, efficiency remains exceptional, with a full load efficiency of 94.8% (using 20 batteries) and a peak efficiency of 95.3%, ensuring optimal performance during power outages. The Marsriva UPS boasts an input power factor of ≥0.99, ensuring effective power utilization while reducing energy wastage. The frequency is set to 50/60Hz by default, with a ±6Hz tolerance that can be adjusted up to ±10Hz, catering to various operational requirements. The UPS supports a power factor of 1.0, delivering maximum usable power to connected loads. With customizable backup time, the Marsriva MR-US10KRT-H Energy Efficient 10kVA Online UPS provides extended operational reliability during outages. Its features like exceptional efficiency, and reliable performance, the Marsriva MR-US10KRT-H Energy Efficient 10kVA Online UPS is the perfect choice for data centers, industrial systems, medical equipment, and other critical applications, delivering unmatched reliability and efficiency in demanding environments.
