MaxGreen MGO-W6KS 6KVA Standard Backup High-Frequency Online UPS
Quick Details
- MPN: MGO-W6KSE-HF
- Model: MGO-W6KS
- 220VAC single-phase three-wire
- Input frequency range: 45Hz-65Hz
- Battery Capacity: 12v 9Ah
- Rated Power: 6KVA/5.4KW
98,000৳
0.0৳
| Main Feature | ||
| Capacity | 6KVA/5.4KW 12v 9Ah | |
| Input Voltage | Single-phase 120Vac-288Vac | |
| Output Voltage | 220Vac | |
| Frequency (Battery Mode) | Frequency precision 0.25% | |
| Noise Level | <55dB | |
| Battery | Battery brand: Always/Star/Equivalent Battery Capacity: 12v 9Ah Battery Qty: 16 units Battery Cabinet: Internal Battery | |
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over-temperature protection | |
| Others | Charging capability: >6h for 90% re-charging of standard model Rectifier Type: IGBT rectifier | |
| Input Features | ||
| Frequency | 45Hz-65Hz | |
| Voltage Range | Single-phase 120Vac-288Vac | |
| Output Features | ||
| Backup Time | Standard back up (15-30) min IT Load | |
| Type of Wave | Sine Wave, THD<3% | |
| Rated power | 6KVA/5.4KW | |
| Manufacture Warranty | ||
| Warranty | 1 Year Warranty Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description

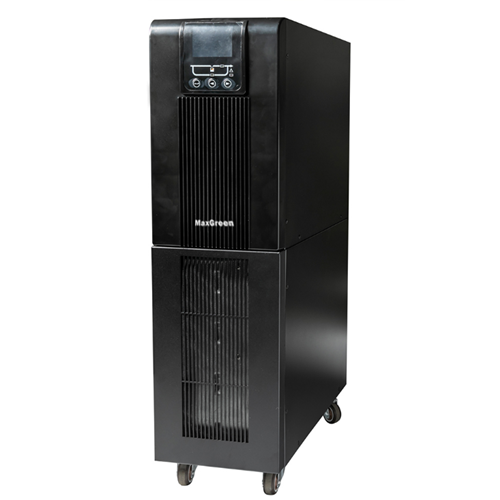

MaxGreen MGO-W6KS 6KVA Standard Backup High-Frequency Online UPS
The MaxGreen MGO-W6KS is a high-frequency online UPS that provides reliable backup power to electronic devices during power outages or voltage fluctuations. With a rated power of 6KVA/5.4KW, it is capable of supporting standard loads for 15-30 minutes. The UPS features a single-phase input voltage ranging from 120Vac to 288Vac, with a frequency of 45Hz-65Hz. It has a high power factor of >=0.99 for single-phase and >0.95 for three-phase, which ensures efficient use of power. The output voltage is a single-phase 220Vac, which is a stable and reliable power supply. The sinewave type of wave ensures that the power supply is clean and without distortion. The UPS uses an IGBT rectifier, which is an efficient and reliable rectifier type. The UPS has a noise level of less than 55dB, which makes it suitable for use in different environments. The UPS comes with an internal battery cabinet that contains 16 units of Always/Star/Equivalent brand batteries, each with a capacity of 12v 9Ah. The charging capability is greater than 6 hours for 90% recharging of the standard model. The UPS has a transfer time of 00, which means that there is no break in the power supply during a power outage. The UPS is ideal for use in small to medium-sized businesses that require a reliable power supply for their electronic devices.
