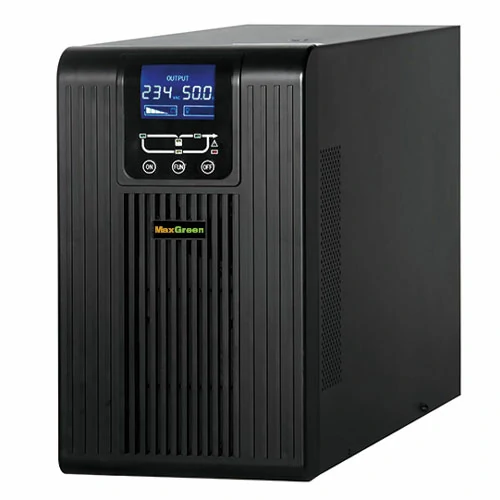

MaxGreen MGO-W10KS 10 KVA Standard Backup High-Frequency Online UPS
Quick Details
- Model: MGO-W10KS
- 220VAC single-phase three-wire
- Input frequency range: 45Hz-65Hz
- Battery capacity: 12V 7Ah
- Rated Power: 10KVA/9.0KW
121,500৳
0.0৳
| Main Feature | ||
| Input Voltage | Single-phase 120Vac-288Vac | |
| Output Voltage | Single-phase 220Vac | |
| Frequency (Battery Mode) | Frequency precision 0.25% | |
| Noise Level | <55dB | |
| Battery | Battery Capacity: 12V 7Ah Battery Qty: 16 units Battery Cabinet: Internal Battery Charging capability: >6h for 90% re-charging of the standard model | |
| Rectifier Type | IGBT rectifier | |
| Input Features | ||
| Frequency | 45Hz-65Hz | |
| Power Factor | >=0.99 for single phase | |
| Voltage Range | Single-phase 120Vac-288Vac | |
| Output Features | ||
| Backup Time | Standard back up (15-30)min | |
| Type of Wave | Pure Sinewave | |
| Transfer Time | 00 | |
| Rated power | 10KVA/9.0KW | |
| Manufacture Warranty | ||
| Warranty | 01-Year Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
MaxGreen MGO-W10KS 10 KVA Standard Backup High-Frequency Online UPS
The MaxGreen MGO-W10KS UPS has a 10KVA/9.0KW Rated Power that protects it from any irregularity in the mains power network when it is in use. It features 16 units of a 12V 7Ah battery. This UPS: >6 hours for 90% of the ordinary model's recharge. With On-Line Double Conversion technology, the inverter stage with galvanic isolation supplies the supply voltage to loads in each scenario. A voltage and current regulated signal that is free of harmonics, noise, and interferences are always accessible thanks to advanced PWM technology. Locally, the system status is communicated through LED signaling and an LCD panel with several menus. The unit's robust software allows for remote management of information. The MaxGreen MGO-W10KS 10 KVA Online UPS comes with a 01-year warranty.
Under the following conditions, the warranty would not be provided:
• UPS burning due to thunder, abnormal overload, insect entrance and others.
• If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7)
• If the product is placed in a dusty and damp place.
• In the absence of Generator connectivity Without proper battery charge, the warranty will be void.
• Battery swelling and overcharging due to the wrong system voltage setting of the UPS.
