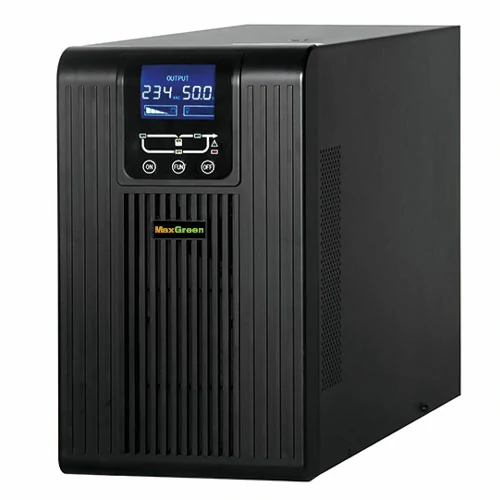

MaxGreen MGO-W10KS 10 KVA Standard Backup Low-Frequency Online UPS
Quick Details
- Model: MGO-W10KS
- 220VAC single-phase three-wire
- Input frequency range: 45Hz-65Hz
- Battery capacity: 12V 7Ah
- Rated Power: 10KVA/9.0KW
211,000৳
0.0৳
| Main Feature | ||
| Input Voltage | Single-phase 120Vac-288Vac | |
| Output Voltage | Single-phase 220Vac | |
| Frequency (Battery Mode) | Frequency precision 0.25% | |
| Noise Level | <55dB | |
| Battery | Battery Capacity: 12V 7Ah Battery Qty: 16 units Battery Cabinet: Internal Battery Charging capability: >6h for 90% re-charging of the standard model | |
| Rectifier Type | IGBT rectifier | |
| Input Features | ||
| Frequency | 45Hz-65Hz | |
| Power Factor | >=0.99 for single phase | |
| Voltage Range | Single-phase 120Vac-288Vac | |
| Output Features | ||
| Backup Time | Standard back up (15-30)min | |
| Type of Wave | Pure Sinewave | |
| Transfer Time | 00 | |
| Rated power | 10KVA/9.0KW | |
| Manufacture Warranty | ||
| Warranty | 01-Year Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
MaxGreen MGO-W10KS 10 KVA Standard Backup Low-Frequency Online UPS
The MaxGreen MGO-W10KS Low-Frequency Online UPS delivers consistent backup power for critical systems. Designed with a single-phase input voltage range of 120Vac-288Vac, it ensures stable performance under varying conditions. With a rated power of 10KVA/9.0KW, this UPS supports sensitive equipment by providing pure sinewave output and zero transfer time. Its IGBT rectifier technology enhances efficiency, while the power factor of ≥0.99 guarantees reliable operation across diverse environments.
Standard backup time ranges from 15 to 30 minutes, making it suitable for critical applications. The MaxGreen MGO-W10KS Low-Frequency Online UPS features an internal battery cabinet with 16 units of 12V 7Ah batteries. It achieves 90% recharging within six hours, offering strong recovery capability. Operating at a noise level below 55dB, it maintains a quiet environment. Frequency precision of 0.25% ensures accurate performance during battery mode, while its design supports long-term durability and consistent energy supply.
The MaxGreen MGO-W10KS Low-Frequency Online UPS is a practical solution for businesses requiring uninterrupted power. Its advanced rectifier and wide input voltage range make it a strong choice for maintaining operations during outages. With dependable backup, precise frequency control, and efficient charging, this UPS supports smooth workflow and equipment safety. It is a trusted option for organizations seeking continuous power protection without compromise.
