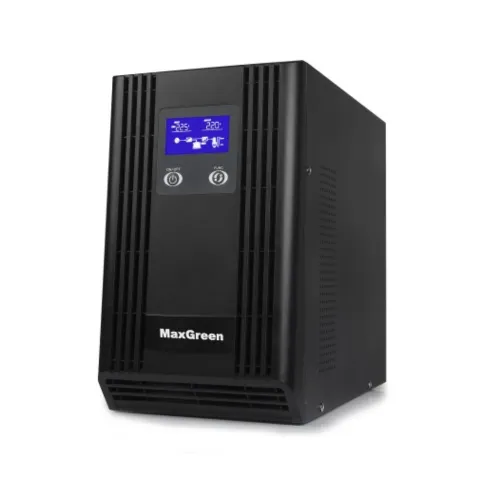

MaxGreen MGO-S1KS(PX1KL) Online UPS

0.0

(0)

Price:

To be announced

MIT Point:

Status:

Call For Price

Product ID:

0015147

Quick Details

Model: MaxGreen MGO-S1KS(PX1KL)
Capacity 1KVA/900W
Input voltage 220VAC
36V external battery
Weight 6.1kg

Call For Price

Specifications
Description
Video
Questions
Review

Main Feature
Capacity	1KVA/900W
Input Voltage	220VAC
Output Voltage	220VAC
Frequency (Battery Mode)	50Hz+/-0.05Hz
Battery	Battery Type Value Regulated Maintainance Free Lead Acid(VRLA) for standard Model with internal battery Battery Voltage/Capacity 36V external battery Recharge Time ~5Hours Max recharge current 6A Floating charge Voltage 27.3V/41.0V
Input Features
Frequency	40~70Hz
Power Factor	0.99@Full Load
Voltage Range	110V~300V Halfload 176V~300V Full load
Manufacture Warranty
Warranty	01 Year

Description

MaxGreen MGO-PX1K Online UPS has Input Nominal input voltage 220VAC ,Voltage Range 110V~300V Halfload 176V~300V Full load, Frequency Range 40~70Hz,Power Factor 0.99@Full Load. Output voltage 220VAC,Voltage Regulation 1%, Frequency(Sync.Mode) 47Hz~53Hz. Frequency(Bat.Mode) 50Hz+/-0.05Hz ,Output THDv 2% linear Load 6% Non-Linear Load ,Waveform Pure Sinewave. Transfer Time Line Mode--Bat Mode 0ms, Inv--Bypass Mode <4ms. Efficiency AC-AC 89% ,ECO 94% ,Battery Mode 88%. Battery & Charger Voltage/Capacity 36V external battery. Battery Type Value Regulated Maintenance Free Lead Acid(VRLA) for standard Model with internal battery.Recharge Time ~5Hours.Max recharge current 6A. Floating charge Voltage 27.3V/41.0V. Display LCD, Buzzer Alarm Bat.Mode/Bat.Low/Overload/Fault. Dimension 145(W)X220(H)X328(L)mm. Weight 6.1kg. Environment Humidity 5~97%(Non Condensing) .Operating Ambient Temperature 0~40â„ƒ. Communication Port S 232/SNMP(opion)/USB(option).
