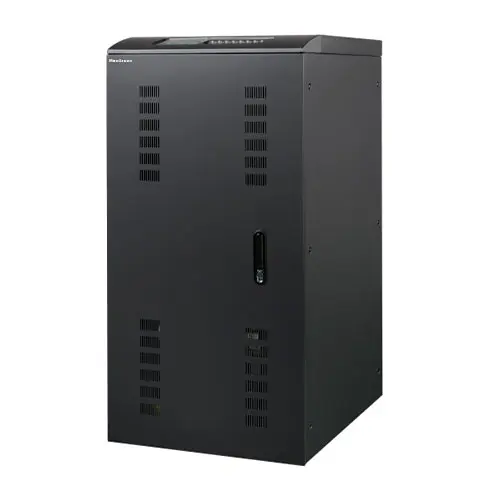

MaxGreen 3B10K 20KVA Low frequency Transformer Base Online UPS
Quick Details
- MPN: MGO-3B10K-50K (LF 3/1)
- Model: MaxGreen 3B10K
- Size: 740 x 560 x 1200mm
- Capacity: 20kVA
- Waveform: Sine Wave,THD<3%
- RS232 / RS485 interface
| Main Feature | ||
| Capacity | 20kVA Phase: 3φ4W+PE Battery voltage(VDC): 384 Crest factor: >3:1 | |
| Display Type | Genaral LCD/7 inches touchable LCD | |
| Load Capacity | Overload: 125% load keep 10min,150% load keep 30s | |
| Input Voltage | 380±25% | |
| Noise Level | <58(1m) | |
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | |
| Input Features | ||
| Frequency | 50/60±0.5%(Free oscillation) | |
| Power Factor | 0.8/0.9 | |
| Voltage Range | 220±1%,Isolation transformer output | |
| Output Features | ||
| Backup Time | Battery supply life can be configured freely | |
| Voltage Range | 220±1%,Isolation transformer output | |
| Power Factor | 0.8/0.9 | |
| Type of Wave | Sine Wave,THD<3% | |
| Manufacture Warranty | ||
| Warranty | One Year Warranty |
Description
MaxGreen 3B10K 20KVA Low frequency Transformer Base Online UPS
MaxGreen UPS serise, include active input PFC rectifier (Power Factor Corrector) and make use of the advantages of PWM technology with IGBT to obtain equipment with high technical features. They resolve mains electricity problems without resorting to the use of the battery most cases, thereby increasing its service life. They are ideal for supplying critical systems of up to 2kVA that require a high reliability and quality supply with low operating and maintenance costs. Data is provided locally through mimic panel with LCD display. The communications interface, together with its powerfull software, allow users to monitor ther status of the unit and provides information on its environment. It comes along with Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection and over temperature protection.
The MaxGreen 3B10K Transformer Base Online UPS has 01 year of warranty.
