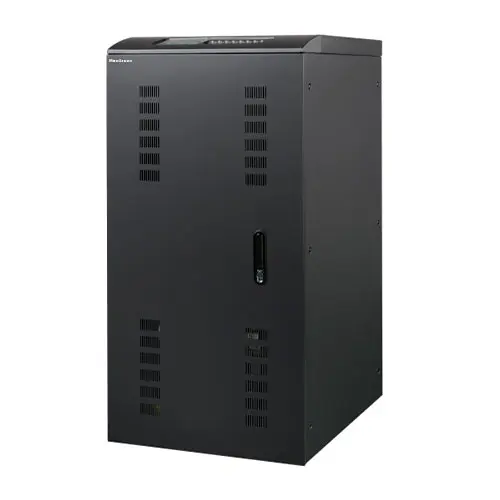

MaxGreen 3B310-60KVA Low-frequency Transformer Base Online UPS
MaxGreen 3B310-60KVA Low-frequency Transformer Base Online UPS

MaxGreen 3B310-60KVA Low-frequency Transformer Base Online UPS

0.0
(0)
Price:
To be announced
MIT Point:
0
Status:
Call For Price
Product ID:
0015143

Quick Details

  • Model: 3B310-60KVA
  • IGBT inverter and output isolation transformer
  • Online double conversion
  • Wide input voltage range
  • RS232/RS485 communication port
Call For Price
Main Feature


Capacity10-60kVA

Display TypeGeneral LCD/7 inches touchable LCD

Load CapacityOverload: 125% load keep 10min,150% load keep 30s

Input Voltage380±25%

Output Voltage380/400/415±1%

Noise Level<60(within 1 meter)

AlarmBattery low-voltage, mains abnormal, overload, UPS fault, over temperature protection

Input Features


Frequency45~66 Automatically select synchronization range according to grid frequency

Voltage Range380±25%

Output Features


Backup TimeBattery supply life can be configured freely

Voltage Range380/400/415±1%, Isolation transformer output

Power Factor0.8/0.9

Type of WaveSine Wave,THD<3%

Manufacture Warranty


Warranty1 year

Description

MaxGreen 3B310-60KVA Low-frequency Transformer Base Online UPS

The MaxGreen 3B310-60KVA Low-frequency Transformer Base Online UPS includes active input PFC rectifier (Power Factor Corrector) and makes use of the advantages of PWM technology with IGBT to obtain equipment with high technology features. They resolve mains electricity problems without resorting to the use of the battery in most cases, thereby increasing its service life. They are ideal for supplying critical systems of up to 2kVA that require high reliability and quality supply with low operating and maintenance costs. Data is provided locally through a mimic panel with an LCD display. The communications interface, together with its powerful software, allows users to monitor the status of the unit and provides information on its environment. It comes along with Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, and over-temperature protection. The MaxGreen 3B310-60KVA comes with a 1-year warranty.

Video

No Video
