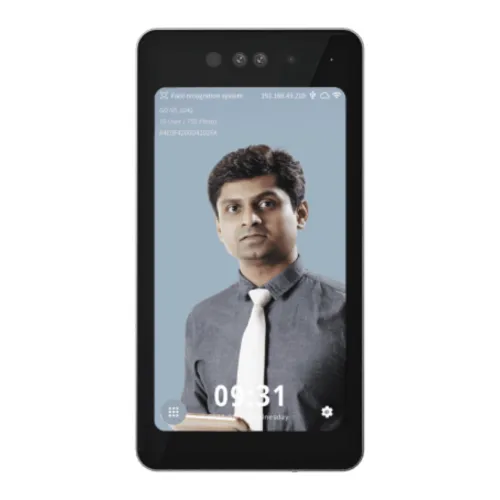

Tipsoi Fastface 8 Time Attendance & Access Control Terminal
Quick Details
- Model: Fastface 8
- Display: 8-inch Capacitive Touchscreen
- Capacity: 10,00,000, Face ID: 50,000
- IR, RGB Dual-Lens Camera
- Live Face Detection, Door Alarm System
95,000৳
0.0৳
| Main Features | |
| Fingerprint Capacity | 5,000 |
| Face Capacity | 50,000 || 100,000 (Optional) |
| ID Card Capacity | 50,000 || 100,000 (Optional) |
| Record Capacity | Logs Capacity: 10,00,000 |
| Display | 8-inch IPS Full-View LCD Touch Screen Resolution: 1280 * 800 |
| Communication | WiFi, LAN, TCP/IP |
| Standard Functions | Live face detection Door Alarm System Voice Broadcast Cloud communication Cloud-based Tipsoi HRM software Real-Time Statistics Clock RTC Auto AGC, AEC & AWB balances Tipsoi Mobile App Enroll once and access anywhere |
| Interface | Relay, Wiegand input/output, RS232, RS485 |
| Others | 1GB RAM, 8GB ROM CPU: Dual Core ARM Cortex-A7, 900 MHz Function: Face, Card, Fingerprint(Optional) IR, RGB dual-lens camera Shutter Type: Electronic Rolling Shutter Anti-backlight RFID Supported RFID Card: 125 Khz RFID card, Standard MIFARE Card, 13.56 MHz 99.99% Accuracy Live Face Detection Yes (0.3 - 1.5m) (Configurable on device) FAR/ FRR for Face Recognition: 0.001/ 1(%) Face Recognition Mode: 1:1, 1:N Matching Speed: ≤0.3 sec WDR: 120dB Intelligent Update OS: Linux Protection Grade: IP65 |
| Physical Specification | |
| Dimension | 248mm x 128mm x 22 mm (L*W*H) |
| Power Supply | DC 12V/2A Power Consumption: Max. 15W |
| Others | Temperature:-40℃ ～ +60℃ Working humidity: 10% ～ 90% |
| Manufacture Warranty | |
| Warranty | 1 Year |
Description
Tipsoi Fastface 8 Access Control Terminal
The Tipsoi Fastface 8 Access Control Terminal is a next-generation biometric security solution designed for organizations that require high-performance access management. Featuring an 8-inch IPS full-view capacitive touchscreen, the Tipsoi Fastface 8 Access Control offers a seamless user experience. It supports a massive log capacity of 1,000,000 records, with face recognition capacity of 50,000 (expandable to 100,000), ID card capacity up to 100,000, and fingerprint storage for 5,000 users, making the Tipsoi Fastface 8 Attendance Machine perfect for large-scale businesses and institutions. Equipped with an advanced IR and RGB dual-lens camera, live face detection, and anti-backlight WDR (120dB), this device ensures 99.99% face recognition accuracy with ultra-fast matching speed of ≤0.3 sec, even in challenging lighting conditions. Powered by a Dual-Core ARM Cortex-A7 900 MHz CPU with 1GB RAM and 8GB ROM, it runs on a secure Linux OS for reliable performance. The Tipsoi Fastface 8 integrates cloud-based Tipsoi HRM software, supports real-time statistics, and works with the Tipsoi Mobile App for remote management, allowing users to enroll once and access anywhere. With multiple connectivity options like WiFi, LAN, and TCP/IP, and standard functions such as door alarm system, voice broadcast, and cloud communication, this device ensures flexible deployment. The Tipsoi Fastface 8 Access Control Terminal supports RFID cards (125 KHz & 13.56 MHz MIFARE), 1:1 and 1:N face recognition modes, and configurable detection range (0.3 - 1.5m). Built with IP65 protection, it can withstand extreme environments (-40℃ to +60℃) and operates efficiently with DC 12V/2A power supply at a maximum of 15W consumption. Its sleek, compact design (248mm x 128mm x 22mm) combined with powerful features makes the Tipsoi Fastface 8 Attendance Machine an ideal choice for modern access control and attendance systems.
