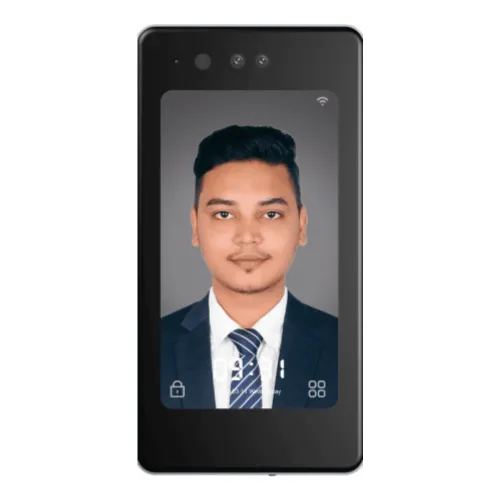

- Tipsoi Fastface 7 Time Attendance & Access Control Terminal
Tipsoi Fastface 7 Time Attendance & Access Control Terminal
Quick Details
- Model: Fastface 7
- Display: 7-inch IPS LCD Touch Screen with 550 lux
- Capacity: 10,00,000, Face ID: 30,000 (Max)
- 1/2.7" 2MP CMOS HD WDR camera
- Live Face Detection, 1 million Pieces of Recognition Records
70,000৳
0.0৳
| Main Features | |
| Face Capacity | 30,000 |
| ID Card Capacity | 30,000 |
| Record Capacity | Logs Capacity: 10,00,000 |
| Display | 7-inch IPS full-view LCD touchscreen with 550 lux Resolution: 1080 * 800px |
| Communication | WiFi, LAN, TCP/IP |
| Standard Functions | Live face detection Door Alarm System Voice Broadcast Cloud communication Cloud-based Tipsoi HRM software Real-Time Statistics Clock RTC |
| Others | 1 GB RAM, 8 GB ROM CPU: Dual Core ARM Cortex-A7, 900 MHz Function: Face, Card, Fingerprint 1/2.7" 2MP CMOS HD WDR camera Camera Resolution: 1920 (V) * 1080 (H) Infrared and RGB Camera (dual camera) Camera Resolution: 1932x1092 px Shutter Type: Electronic Rolling Shutter Anti-backlight RFID Supported RFID Card: 125 Khz RFID card, Standard MIFARE Card, 13.56 MHz 99.99% Accuracy Enroll once and access anywhere Live Face Detection Yes (0.3 - 1.5m) (Configurable on device) FAR/ FRR for Face Recognition: 0.001/ 1(%) Face Recognition Mode: 1:1, 1:N Matching Speed: ≤0.3 sec Protection grade: IP65 WDR: 120dB Tipsoi Mobile App Intelligent Update OS: Linux |
| Physical Specification | |
| Dimension | 323mm*120mm*99mm (L*W*H) |
| Power Supply | DC 12V/2A Power Consumption: Max. 15W |
| Others | Temperature:-40℃ ～ +60℃ Working humidity: 10% ～ 90% |
| Manufacture Warranty | |
| Warranty | 1 Year |
Description
Tipsoi Fastface 7 Access Control Terminal
The Tipsoi Fastface 7 Access Control Terminal is a next-generation biometric device that combines advanced security and attendance management for modern enterprises. Featuring a 7-inch IPS full-view LCD touchscreen with 1080×800 resolution and 550 lux brightness, the Tipsoi Fastface 7 Access Control ensures clear visibility in any environment. This device is powered by a dual-camera system—infrared and RGB 1/2.7" 2MP CMOS HD WDR cameras with 120dB WDR and anti-backlight technology—providing superior accuracy and recognition even under poor lighting. With a massive face capacity of 30,000, ID card capacity of 30,000, and 1 million recognition logs, the Tipsoi Fastface 7 Attendance Machine is ideal for high-traffic workplaces. It supports RFID cards (125kHz standard and MIFARE 13.56 MHz) and offers face recognition modes (1:1 and 1:N) with ≤0.3-second matching speed, live face detection, and 99.99% accuracy, ensuring seamless and secure access. Equipped with Tipsoi cloud-based HRM software, real-time statistics, and the Tipsoi Mobile App, the Tipsoi Fastface 7 allows remote management and intelligent updates. Powered by Linux OS, Dual Core ARM Cortex-A7 CPU, 1GB RAM, and 8GB ROM, it delivers fast performance and reliability. Connectivity options include WiFi, LAN, and TCP/IP, while built-in features like door alarm system, voice broadcast, and clock RTC enhance functionality. Built with an IP65-rated design, the terminal works in extreme conditions from -40℃ to +60℃ with 10–90% humidity tolerance, making it highly durable. With dimensions of 323×120×99 mm, DC 12V/2A power supply, and 15W max power consumption, the Tipsoi Fastface 7 Access Control Terminal is a perfect solution for businesses seeking a secure, fast, and smart attendance and access control system.
