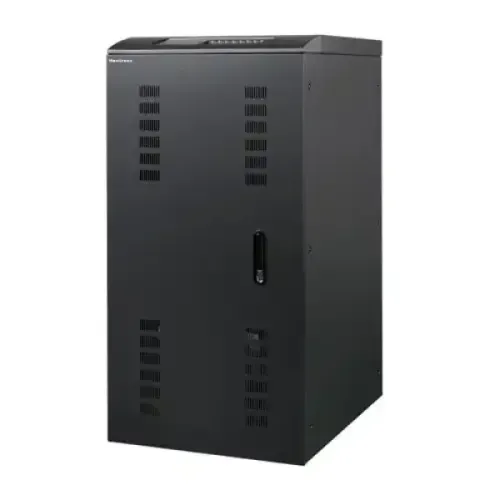

MaxGreen B2033-LF 20KVA Low-Frequency Transformer Base Online UPS
Quick Details
- Model: B2033-LF
- Capacity: 20KVA
- Voltage Range: 380±25%
- Power Factor: 0.8/0.9
- IGBT inverter and output isolation transformer
| Main Feature | ||
| Capacity | 20 KVA | |
| Display Type | General LCD | |
| Load Capacity | Overload: 125% load keep 10min,150% load keep 30s | |
| Input Voltage | 380±25% | |
| Frequency (Battery Mode) | 45～66 Automatically select synchronization range according to grid frequency | |
| Noise Level | <60(within 1 meter) | |
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | |
| Input Features | ||
| Frequency | 45～66 Automatically select synchronization range according to grid frequency | |
| Voltage Range | 380±25% | |
| Output Features | ||
| Backup Time | depends on customer configuration | |
| Voltage Range | 380/400/415±1％, Isolation transformer output | |
| Power Factor | 0.8/0.9 | |
| Type of Wave | Sine Wave,THD<3% | |
| Manufacture Warranty | ||
| Warranty | 1 Year |
Description
MaxGreen B2033-LF 20KVA Low-Frequency Transformer Base Online UPS
The MaxGreen B2033-LF 20KVA Low-Frequency Transformer Base Online UPS is a robust power solution designed for reliable performance. With a capacity of 20KVA, this UPS operates within a voltage range of 380±25%, ensuring stability in power supply. The power factor of 0.8/0.9 further enhances its efficiency. Equipped with an IGBT inverter and output isolation transformer, it prioritizes a secure and stable power output. The System voltage (VDC) is 384, allowing for consistent and regulated power distribution. Notably, the UPS demonstrates its resilience by sustaining a 125% load for 10 minutes and a 150% load for 30 seconds. The input voltage is specified at 380±25%, while the output voltage ranges from 380 to 415V±1%. The inclusion of a General LCD Display adds to the user-friendly features, providing clear and concise information for convenient monitoring and control of the UPS system. The MaxGreen B2033-LF 20KVA Low-Frequency Transformer Base Online UPS is a reliable and efficient solution for critical power applications.
