Dahua 1000VA Offline UPS
Quick Details
- MPN: DH-PFM3350-1000
- Model: 1000VA
- Output Capacity: 1000 VA
- Input Voltage: 150–275 VAC
- Battery Type: Lead-acid battery
- Protection: Overload, Heavy Discharge, Overcharge
6,900৳
0.0৳
| Main Feature | ||
| Capacity | 1000 VA | |
| Load Capacity | 600 W | |
| Input Voltage | 170–280 VAC | |
| Output Voltage | 220 VAC ± 10% | |
| Battery | Battery Type: Lead-acid battery Qty.of Battery: 12 V, 1 × 9Ah | |
| Alarm | Battery powered: Alarms one sound every 6 seconds Low power: Alarms one sound every 1 second Overload: Alarms one sound every 0.5 seconds | |
| Indications | Battery powered: The red light flashes once every 6 seconds Mains supply: Green light is solid on Charging while shutdown: The yellow light flashes once every 20 seconds Charging while on: The green light is solid on and the yellow light flashes once every 20 seconds. | |
| Others | Protection: Overload, heavy discharge and overcharge | |
| Input Features | ||
| Frequency | 50/60 Hz | |
| Voltage Range | 220 VAC ± 10% | |
| Output Features | ||
| Power Factor | ≥0.6 | |
| Type of Wave | AC Mode: Pure sine wave, Battery Mode: Simulated sine wave | |
| Transfer Time | 4 ms–8 ms | |
| Physical Specification | ||
| Dimension | 298.4 mm × 101.5 mm × 142.2 mm | |
| Weight | 4.9 kg | |
| Manufacture Warranty | ||
| Warranty | 1 year Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description

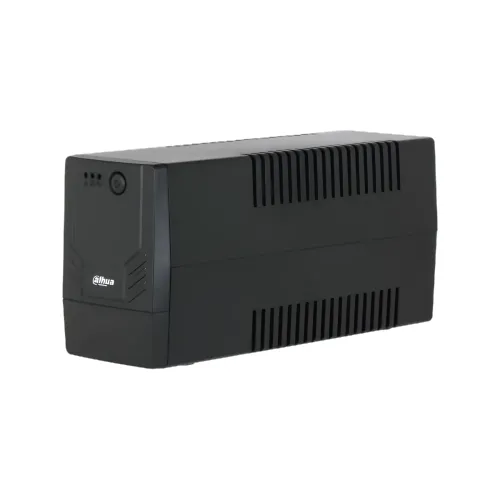

Dahua 1000VA Offline UPS
The Dahua 1000VA Offline UPS is designed to deliver stable power performance with a wide input range of 170-280 VAC. It adjusts smoothly to voltage fluctuations and diverse grid conditions, ensuring consistent operation. With quiet functionality, it maintains a peaceful environment while offering digital voltage stabilization. Its compact build and protective features make it a reliable choice for home and office use.
Equipped with a lead-acid battery, it charges up to 90% within 4-6 hours. The Dahua 1000VA Offline UPS provides 1000 VA / 600 W output capacity with rapid switching between 4-8 milliseconds. It supports pure sine wave in AC mode and simulated sine wave in battery mode. Safety is enhanced with protection against overload, short circuit, overcharging, and over-discharge. Indicator lights and alarms keep users informed about battery status, faults, and replacement needs.
The Dahua 1000VA Offline UPS features European standard plugs and sockets, a durable plastic casing, and a lightweight design at 4.9 kg. Its efficient charging system, strong protective mechanisms, and fast response time make it a practical solution for continuous power supply. Operating within 0 °C to +40 °C, it adapts well to different environments. Certified with CE standards, it ensures dependable performance for both residential and professional applications.
