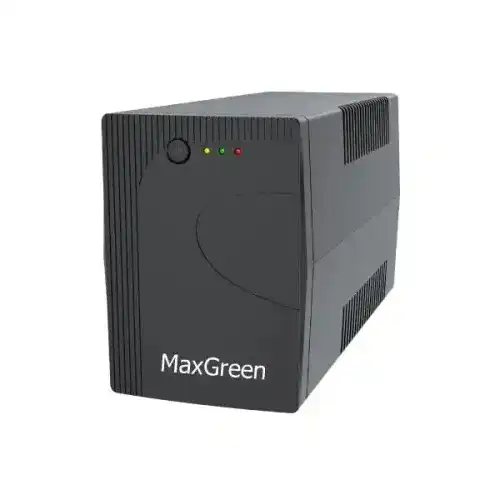

MaxGreen 850VA Offline UPS

0.0

(0)

Price:

To be announced

MIT Point:

Status:

Out Of Stock

Product ID:

0015045

Quick Details

Model: MG-LI-850VA
Capacity 850VA/480W
Input Voltage 220Vac
Battery 12V/9Ah*1

Out Of Stock

Specifications
Description
Video
Questions
Review

Main Feature
Capacity	850VA
Load Capacity	480W
Input Voltage	220Vac
Output Voltage	220Vac
Frequency (Battery Mode)	50Hz ± 1Hz
Noise Level	Less than 40dB
Battery	Internal maintenance-free lead-acid (12V/9Ah*1)
Alarm	Battery mode- Sounding every 10 seconds Low battery- Sounding every 10 seconds Overload -Sounding every 10 seconds Battery Replacement -Alarm Sounding every 10 seconds Fault- Continuously sounding
Indications	Line Mode Green lighting ,Battery Mode Yellow Lighting ,Fault Red Lighting
Input Features
Frequency	50 Hz
Voltage Range	140-290VAC
Output Features
Backup Time	Up to 30 Minutes
Voltage Range	140-290VAC
Type of Wave	Simulated Sine Wave (Bat Mode)
Manufacture Warranty
Warranty	01 year Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS.

Description

MaxGreen MGBK850-LI Offline UPS Capacity 850VA/480W. Input Voltage 220Vac. Input Voltage Range 140-290VAC. Frequency Range 50 Hz. Output Voltage 220Vac. AC Voltage Regulation Â±10% (Bat Mode). Frequency Range 50Hz Â± 1Hz (Bat Mode). Transfer time Typical 2-6ms. Waveform Simulated Sine Wave (Bat Mode). Battery Internal maintenance-free lead-acid. Battery Type & Number 12V/9Ah*1. Net Weight (kg) 4.2 4.6. Dimension,D*W*H(mm) 297X101X142. Typical Recharge Time 4-6 hours recover to 90% capacity. Full protection Short circuit, Overload, Battery discharge and overcharge, Surge protection. Humidity 0-90% Relative Humidity 0-40 â„ƒ (Non-condensing). Noise Level Less than 40dB. Optional USB/RS232 Port Supports Windows 2000/2003/XP/Vista/2008,Windows 7/8 Linux Unix and MAC.
