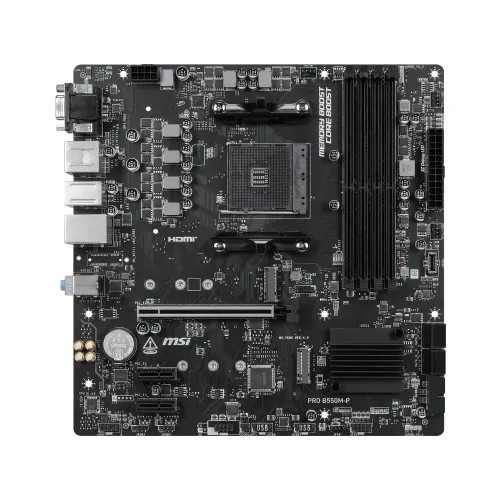

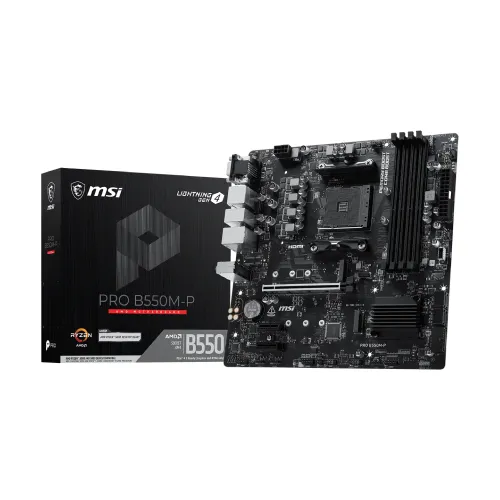

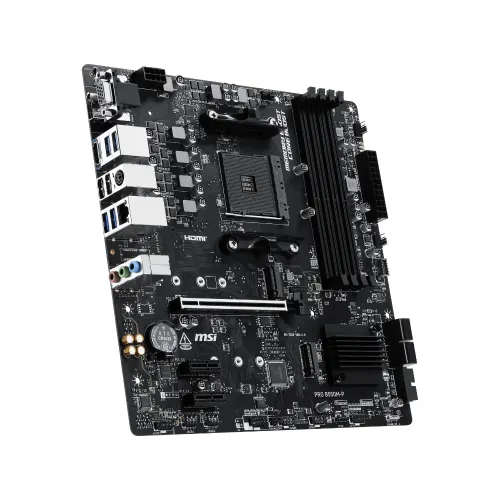

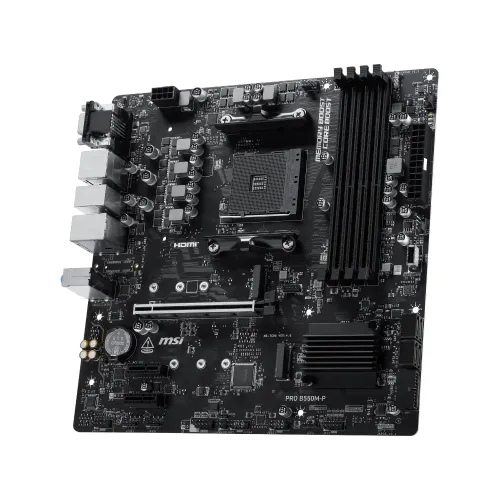

MSI PRO B550M-P AMD AM4 mATX Motherboard
Quick Details
- Model: PRO B550M-P
- Supported CPU: Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G-Series (AM4)
- Supported RAM: 4x DDR4 Slots, Max 128GB, Up to 4400+ MHz (OC)
- Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4, 1x VGA
- Features: 2x M.2 Slot, Realtek RTL8111H 1Gbps LAN
1৳
0.0৳
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4 | |
| Chipset | AMD B550 | |
| Form Factor | mATX 243.84mmx243.84mm | |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio | |
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4x DDR4 | |
| Supported Memory | Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4400+ MT/s • 1DPC 2R Max speed up to 3733+ MT/s • 2DPC 1R Max speed up to 3866+ MT/s • 2DPC 2R Max speed up to 3466+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode | |
| Maximum Memory | Up to 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Supports DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Display Port (s) | 1x DisplayPort 1.4 | |
| VGA (s) | 1x VGA | |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) | |
| LAN Port (s) | Realtek RTL8111H 1Gbps LAN | |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports | |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED Support for Windows 11 64-bit, Windows 10 64-bit | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years |
Description
MSI PRO B550M-P AMD AM4 mATX Motherboard
The MSI PRO B550M-P AMD AM4 mATX Motherboard is designed for AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series desktop processors. This Motherboard uses the AMD B550 chipset and supports four DDR4 memory slots with a maximum capacity of 128GB. Memory speeds reach up to 4400+ MT/s via A-XMP OC mode, supporting a wide range from DDR4 2667 through 4400+ MHz across various configurations.
Dual-channel mode, non-ECC unbuffered memory, and JEDEC speed support give this MSI PRO B550M-P AMD Motherboard broad memory compatibility for diverse build requirements. The primary PCIe 4.0 x16 slot from the CPU delivers lightning-fast GPU bandwidth for gaming and professional workloads. Two additional PCIe 3.0 x1 slots from the chipset expand connectivity options for additional cards and peripherals.
The MSI PRO B550M-P Motherboard includes two M.2 slots, with the first supporting PCIe 4.0 x4 and SATA mode and the second supporting PCIe 3.0 x4 for flexible NVMe storage. Four SATA 6G ports support RAID 0, 1, and 10 configurations, while M.2 NVMe slots support RAID 0 and RAID 1 setups. Onboard graphics output includes one HDMI 2.1, one DisplayPort 1.4, and one VGA port for integrated graphics connectivity across multiple display types.
Realtek ALC897 codec delivers 7.1-channel HD audio for studio-grade sound quality during gaming and media use. The MSI AMD Motherboard features a Realtek RTL8111H 1Gbps LAN controller for stable, low-latency network performance. The MSI PRO B550M-P mATX Motherboard has rear USB ports include two USB 2.0 and four USB 5Gbps Type-A connections for broad peripheral support.
Four EZ Debug LEDs simplify troubleshooting during initial system builds and hardware upgrades significantly. MSI Center software integrates all exclusive MSI tools into one clean, user-friendly interface for system management. The MSI AM4 Motherboard measures 243.84×243.84mm and fully supports Windows 10 and Windows 11 64-bit operating systems.
