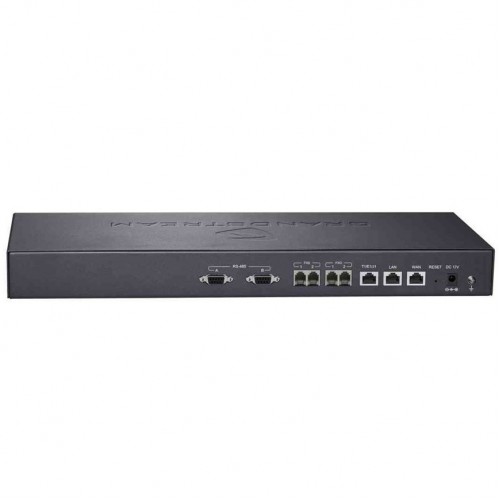

Grandstream HA100 IP PABX Server
Quick Details
- Model: HA100
- Fast 10 to 50 second system switching
- Smart failover solution
- Up to 14 LED indicators
- Gratuitous ARP forces SIP endpoints
| Brand | Grandstream |
| Model | HA100 |
| Device Type | High Availability / Failover Controller |
| Compatible PBX | 2 × UCM6510 |
| Primary / Backup | Primary UCM6510 + Hot-Standby Secondary UCM6510 |
| Automatic Failover | Yes |
| Switching Time | Approx. 10–50 seconds |
| External FXS Ports | 2 |
| External FXO Ports | 2 |
| T1/E1/J1 Port | 1 |
| Network Ports | 1 × LAN + 1 × WAN |
| RS-485 Ports | 2 |
| Internal FXS Ports | 4 (2 FXS-A + 2 FXS-B) |
| Internal FXO Ports | 4 (2 FXO-A + 2 FXO-B) |
| Internal T1/E1/J1 | 2 Ports (A + B) |
| Internal Network Ports | 2 LAN + 2 WAN |
| LED Indicators | Up to 14 |
| Failover Monitoring | Continuous monitoring of both UCM6510 units |
| SIP Endpoint Failover | Supported |
| Gratuitous ARP | Supported |
| Power Supply | DC 12V / 1.5A |
| Operating Temperature | 0°C – 40°C |
| Operating Humidity | 10% – 90% RH |
| Use Case | Enterprise, Office & Mission-Critical VoIP Systems |
Description
Grandstream HA100 IP PABX Server
The HA100 is ideal for any business that requires an always-on, redundant voice system by providing an automatic failover solution when paired with two UCM6510 IP PBXs. The device will constantly monitor the operational status of both UCM6510s and will automatically switch all system control to the hot-standby secondary UCM6510 when the primary device fails for any reason. The HA100 offers an automated failover solution for the UCM6510 IP PBX. When connecting between two UCM6510, the HA100 constantly monitors the operation status of both UCM6510 and automatically switches the system control (including all of the connected telecom lines, network links, auxiliary devices, and all of the SIP endpoints previously registered on the primary UCM6510) to the hot-standby secondary UCM6510 in the event that the primary UCM6510 fails. It can complete the entire system switch between 10 and 50 seconds depending on the number of registered SIP endpoints. Thanks to its smart monitoring and automated failover capability, the HA100 is an ideal high-availability solution for the UCM6510 to ensure maximum total system reliability and uptime.
