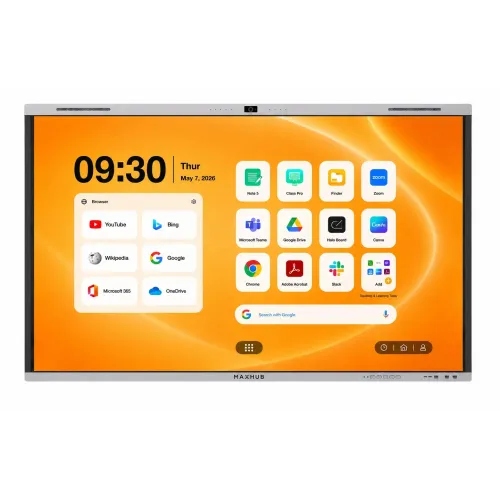

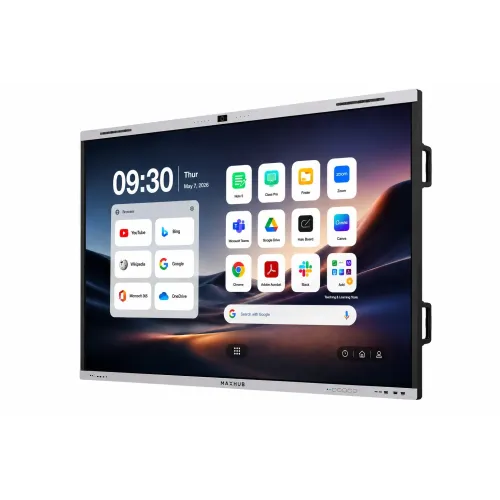

Maxhub U6540 65" 4K UHD Interactive Flat Panel With 50MP Camera
Quick Details
- Model: U6540
- Display: 65-inch, 4K UHD (3840×2160)
- CPU: A76×4+A55×4 Octa-core, 2.4GHz, 6 TOPS NPU
- RAM: 16GB, Storage: 256GB, GPU: Mali-G610 MP4
- Android 15 EDLA OS, 50MP Camera, 8 Array Mic, Built-in Note 5
220,500৳
0.0৳
| Display Details | ||
| Display Format Native Resolution | 3840 × 2160 4K Ultra HD | |
| Aspect Ratio | 16:9 | |
| Picture Response Time | 8ms | |
| Refresh Frequency | 60Hz | |
| Display Colors | 1.07B (10bit) | |
| Brightness (typical) | 500 nits (max.) | |
| Contrast Ratio | 5,000:1 (typ.) 50,000:1 (dynamic) | |
| Others | Color Gamut (typ.): 98% sRGB Color Accuracy: ΔE≤1 Surface Technology: Non-glare, 25% hazeEtched-AG Technology Eyes Care: TÜV Flicker Free, TÜV Low Blue Light Backlight Unit: DLED | |
| Touch System | ||
| Touch Point | 50 Points touch | |
| Touch Response Time | ≤ 2.5 ms | |
| Others | Touch Technology: Infrared recognition Accuracy: ±0.5mm MAXHUB Think&Ink: Direct Annotation / Palm Rejection / Sharp Erase / Erase and Write Simultaneously / Multi-level Object Recognition / Single Pen Dual Color | |
| Operating System | ||
| System Version | Android 15 Google EDLA certification | |
| CPU | A76×4+A55×4 Octa-core, 2.4GHz SoC Process: 8 nm NPU: 6 TOPS | |
| GPU | Mali-G610 MP4 | |
| RAM | 16GB | |
| ROM | 256GB | |
| Connectivity | ||
| HDMI | HDMI IN × 4 HDMI OUT × 1 | |
| PC Audio In | AUDIO IN × 1 | |
| Audio out | AUDIO OUT × 1 | |
| LAN | RJ45 IN × 1 RJ45 OUT × 1 | |
| USB | USB 2.0 × 1 USB 3.0 × 4 USB Type-C × 2 USB Type-C × 1 | |
| Touch Output | Touch × 2 | |
| RS232 | RS232 × 1 | |
| TF CARD | TF Card Port × 1 | |
| Others | DP IN × 1 SPDIF × 1 Module slot × 2 Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz Bluetooth: 5.2 | |
| Physical Specification | ||
| Active Screen Size | 65" | |
| Power | AC 100~240V 50/60Hz | |
| Standby Power | ≤ 0.5W | |
| Power Requirements | Power Saving Energy Star Certification Max Power Consumption (typ.): 300W | |
| Others | Camera: Resolution: 50MP FOV: 115° DFOV, 101° HFOV, 85° VFOV Feature: Manual Mode, Auto framing, Speaker tracking, Person counting, Random election Audio System: SkyWave Sound System Sound Channel: 2.2 Speaker Power: 2×8W+2×18W (output), 2×12W+2×25W (maximum) Sound Pressure Level: 88 dB (1W, 1m) Microphone Quantity 8-mic array Pick-up Angle: 180° Pick-up Range: 0~12m Feature: Intelligent audio fence, AI spatial sound, AEC (Auto echo cancellation), ANC (AI noise cancellation), AGC (Auto gain control) | |
| Warranty | ||
| Warranty | 3 Years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue) |
Description
Maxhub U6540 65" 4K UHD Interactive Flat Panel
The Maxhub U6540 65" 4K UHD Interactive Flat Panel With Camera delivers visuals with 3840×2160 resolution, 16:9 aspect ratio, and smooth 60Hz refresh rate. The Interactive Flat Panel features 500 nits brightness, 5000:1 contrast, and dynamic 50000:1 contrast for vivid clarity. Maxhub 4K Interactive Flat Panel offers 1.07 billion colors, 98% sRGB gamut, and ΔE≤1 accuracy for precise color reproduction. Maxhub U6540 65" Interactive Flat Panel includes non-glare etched AG technology, TÜV flicker-free certification, and low blue light protection for comfortable viewing. Maxhub Interactive Flat Panel supports 50-point infrared touch with ±0.5mm accuracy and advanced annotation features like palm rejection and multi-object recognition. Maxhub IFP Display runs on Android 15 with Google EDLA certification, powered by a 10th Gen Intel Core i5 and octa-core GPU. Maxhub Interactive Flat Panel includes 16GB RAM, 256GB storage, Mali-G610 MP4 GPU, and 6 TOPS NPU for smooth multitasking. Maxhub U6540 65" 4K UHD Interactive Flat Panel With Camera provides extensive connectivity including HDMI, USB, Type-C, LAN, DP, and RS232 ports. Maxhub Interactive Flat Panel supports Wi-Fi 6, Bluetooth 5.2, and seamless BYOD connectivity for collaborative environments. Maxhub 4K Interactive Flat Panel features a 50MP camera with auto framing, speaker tracking, and facial recognition. Maxhub U6540 65" Interactive Flat Panel includes an 8-microphone array with 180° pickup and 12m range, clear audio capture. Maxhub Interactive Flat Panel integrates AI audio features like noise cancellation, echo cancellation, and automatic gain control for enhanced communication. Maxhub U6540 Interactive Flat Panel delivers powerful sound through a 2.2 channel system with high output and clarity. Maxhub IFP Display ensures durability with IP5X dustproof protection, antibacterial surfaces, and 9H hardness glass for long-term reliability.
