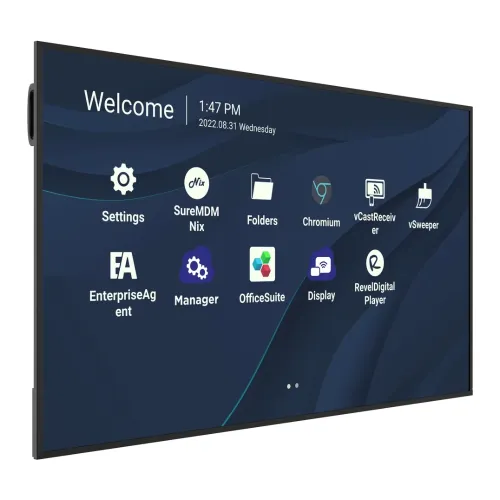

ViewSonic CDE7530 75" 4K UHD Wireless Commercial Display
Quick Details
- Model: CDE7530
- ULTRA HD RESOLUTION
- Powerful ALL-IN-ONE SOC Platform
- Integrated Content Management System
- Remote device management with myViewBoard Manager
| Display Details | |
| Display Format Native Resolution | 3840 x 2160 |
| Panel Type | Type/ Tech: TFT LCD Module. ADS type, DLED backlight |
| Aspect Ratio | 16:9 |
| Picture Response Time | 8ms |
| Panel Resolution | 3840 x 2160 |
| Display Colors | 1.07G (8bits + FRC-) |
| Brightness (typical) | 500 nits (typ.) |
| Contrast Ratio | 1200:1 (typ.), 5000:1 (DCR enabled) |
| Viewing Angle | 178º horizontal, 178º vertical |
| Life Time | 50,000 hours |
| Others | Operation Rating 24/7 Anti-Glaire, 3H hardness, Haze 25% |
| Touch System | |
| Surface Hardness | Anti-Glaire, 3H hardness, Haze 25% |
| Operating System | |
| System Version | Android 11 |
| CPU | Quad-core ARM Cortex A55 |
| RAM | 4GB |
| ROM | 32GB |
| Others | Internal Speakers 10W x2 |
| Connectivity | |
| HDMI | INPUT HDMI: 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC) OUTPUT HDMI: 2.0 x1 ( 3840x2160 @60Hz ) |
| PC Audio In | Audio In x 1 |
| LAN | Yes |
| USB | Type A: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB) Type C: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet) |
| RS232 | RS232 x 1 |
| Physical Specification | |
| Active Screen Size | 75 inch |
| Dimensions | Physical (inch / mm): 66.36 x 37.94 x 3.21in/ 1685.6 x 963.7 x 81.6mm Packaging (inch / mm): 73.35 x 42.91 x 8.86 in./1863 x 1090 x 225 mm |
| Weight | Net (lb / kg): 76.39 lbs/34.65 kg Gross (lb / kg): 106.15 lbs/48.15 kg |
| Power | Voltage: 100-240 VAC +/- 10% Consumption: 126 W(typ.) < 0.5W(off) |
| Warranty | |
| Warranty | 3 years |
Description
ViewSonic CDE7530 75" 4K UHD Wireless Commercial Display
The ViewSonic CDE7530 75" 4K UHD Wireless Commercial Display is designed for professional environments requiring advanced connectivity, continuous operation, and impactful communication. The ViewSonic CDE7530 integrates wireless presentation technology that enhances efficiency, while a single USB Type-C cable delivers 65W power for streamlined device integration. With 24/7 video playback, the ViewSonic CDE7530 ensures uninterrupted communication, making it suitable for retail, corporate, and educational applications. Remote device management is simplified through myViewBoard Manager, while ProAV compatibility with Crestron, Extron, and AMX allows seamless integration into enterprise systems. The ViewSonic CDE7530 supports portrait orientation for impactful brand signage, expanding usability in commercial spaces. Featuring a 75" TFT LCD ADS panel with 3840 x 2160 resolution, 16:9 aspect ratio, and 1.07 billion colors, it delivers sharp and vibrant visuals. Brightness reaches 500 nits with a contrast ratio of 1200:1 typical and 5000:1 dynamic, supported by wide 178-degree viewing angles. Connectivity options include HDMI 2.1 x3, HDMI out, USB 2.0, USB 3.0, USB Type-C with 65W PD, RS-232, OPS slot, WiFi slot, LAN RJ45, SPDIF, and dual 10W speakers. Powered by Android 11 with a quad-core ARM Cortex A55 processor, 4GB RAM, and 32GB storage, the system ensures smooth operation. Surface treatment includes anti-glare coating with 3H hardness for durability. The display supports both landscape and portrait orientations, with VESA wall mount compatibility at 800x600mm. Operating conditions range from 0 to 40℃ with humidity tolerance of 10%-90% RH. Dimensions measure 66.36 x 37.94 x 3.21 inches, with a net weight of 76.39 lbs and gross weight of 106.15 lbs. The ViewSonic CDE7530 is engineered for businesses requiring high-quality visuals, advanced connectivity, and continuous operation, making it a powerful solution for professional communication and signage needs.
