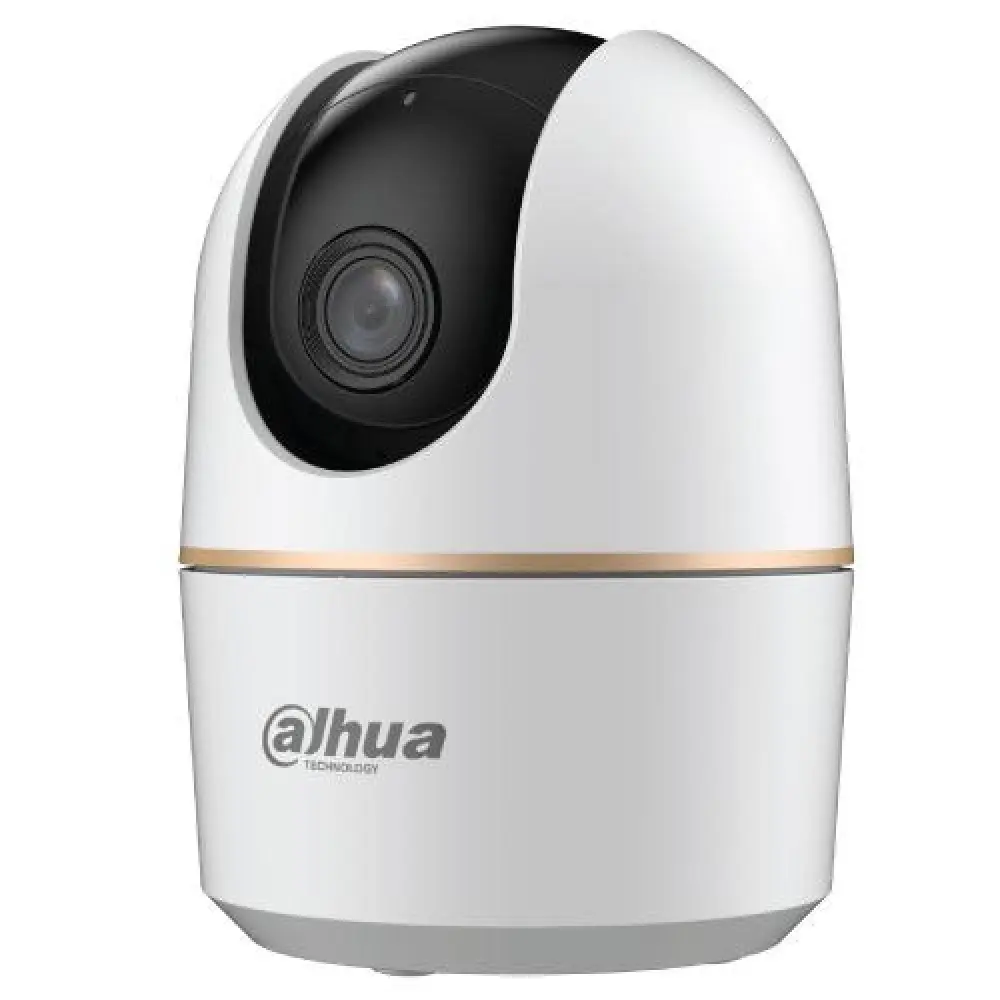

Dahua DH-IPC-H5AS 5MP Indoor Fixed-focal Smart Dual Light Wi-Fi Pan & Tilt Network Camera

Camera

Image Sensor

1/3.2″ CMOS

Max. Resolution

2880 (H) × 1620 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Illumination Distance

Up to 20 m (65.62 ft) (IR)

Up to 10 m (32.81 ft) (Warm light)

Illuminator On/Off Control

Auto

Illuminator Number

1 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0° to 355°;

Tilt: –5° to 80°

Lens

Max. Aperture

F2.0

Field of View

H: 95°; V: 53°; D: 110°

Intelligence

Human Detection

Pet Detection

Yes

Yes

Video

Video Compression

H.265; H.264

Video Frame Rate

Main stream: 2880 × 1620@15 fps, max up to 25 fps;

Sub stream: 640 × 360@15 fps, max up to 25 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Resolution

5M (2880 × 1620); nHD (640 × 360)

Video Bit Rate

H.265: 32 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

Yes

Image Rotation

0°/180°

Audio

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/a/ac/ax 2.4 G & 5 G, EIRP≤20 dBm@2400–2483.5 MHz (CE), EIRP≤23 dBm@5150–5250 MHz (CE), EIRP≤20 dBm@5250–5350 MHz (CE), EIRP≤27 dBm@5470–5725 MHz (CE), EIRP≤14 dBm@5725–5875 MHz (CE)

Storage

Micro SD card (up to 256 GB)

Management Software

DMSS

Mobile Client

iOS;Android

Certification

Certifications

CE

Power

Power Supply

5 VDC (±5%)

Power Consumption

Basic: 1.565 W (5 VDC);

Max.: 3.72 W (5 VDC) (WDR + intelligence + warning sound + warning light)

Environment

Operating Temperature

–10 °C to +45 °C (+14 °F to +113 °F)

Operating Humidity

≤95% (RH), non-condensing

Structure

Casing Material

Plastic

Product Dimensions

Φ77.8 mm × 112.1 mm (Φ3.06″ × 4.41″)

Net Weight

0.2 kg (0.44 lb)
