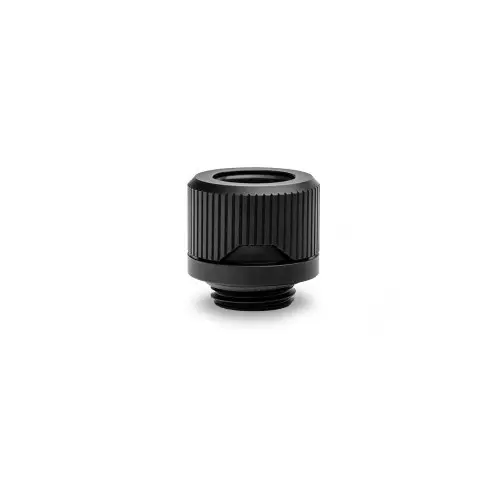

EKWB EK-Quantum Torque HDC 12 Black

EKWB EK-Quantum Torque HDC 12 Black

The latest EKWB EK-Quantum Torque HDC 12 Black are EK's new minimalistic 12mm hard-tube compression fittings that's are designed for use with solid tubing such as Acrylic and PETG. It is featured with a non-intrusive, yet striking look, and with NO added branding at all. The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in EK Quantum signature shape allowing for the colored aesthetic ring to be shown. In this torque, the colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately. It is featured with Finish: Satin black, Thread: G1/4" BSP; 4.5mm male thread length that Supported tube: 12mm OD. Here, the outer diameter of a fitting 20mm and Installed height: 15mm. It's Compatible solid tubing are- Acrylic, PETG, Copper, Brass, Stainless Steel. Here,the fitting barb and the compression rings are covered with a unique, high-quality satin black finish and also both are made of CNC machined brass and the seal is made quality rubber O-rings. Black EK-QuantumTorque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop. The smooth base fitting surface has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. This is highly recommended to use an Allen Key 9mm (purchased separately) to prevent skin damage to the fingertips while installing the fitting. The new EKWB EK-Quantum Torque HDC 12 Black has 02 years warranty.
