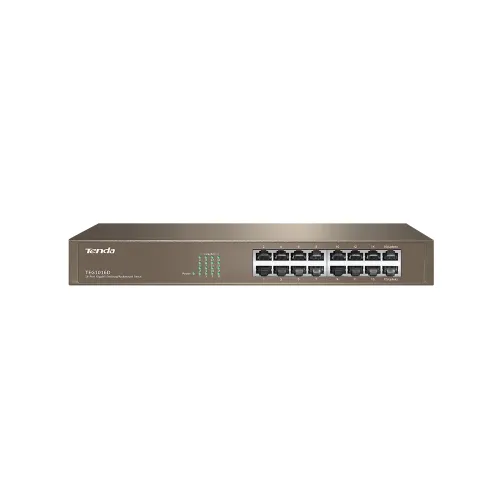

Tenda TEG1016D 16 Port Gigabit Ethernet Metal Body Switch
Quick Details
- Model: TEG1016D
- Interface: 16*10/100/1000
- Switch Capacity: 32Gbps
- MAC Address Table: 8K
- Function: plug-and-play
1৳
0.0৳
| Main Feature | |
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Transmission Method | Recommended: CAT5/5e UTP or better |
| MAC Address Table | 8K |
| Environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Hardware Features | |
| Interface | 16*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) |
| LED | 1* Power,16* Link/Act |
| Power Supply | Input: 100-240V AC 50/60Hz |
| Dimensions (L x W x H) | 294.0mmx179.0mmx44.0mm |
| Manufacture Warranty | |
| Warranty | 01-Year |
Description
Tenda TEG1016D 16 Port Gigabit Ethernet Metal Body Switch
The Tenda TEG1016D 16x10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and a big cache capacity guarantee the prompt transfer of large files and steady streaming video. Stay in contact 24/7. The ports on this switch provide excellent lightning protection. The damage rate to the ports from the lightning surge is significantly reduced because of the professionally integrated lightning protection circuit, which enables all 16 ports to offer IV-class (6 kV in common mode) lightning protection. The built-in power supply module has improved lightning protection and is capable of withstanding a 6 kV lightning surge, which is three times more than that of previous switches. This successfully guards the switch against being harmed by unfavorable thunderstorms. Full steel housing with through-hole plating on three faces allows for more effective heat dissipation; fanless design assures quiet operation and dust-free operation; seamlessly integrates into workplaces; Because of its 13-inch dimension, it can be mounted on a desktop or a rack, and its plug-and-play functionality makes it simple to operate. The Tenda TEG1016D 16 Port Ethernet Switch comes with a 01-year warranty.
