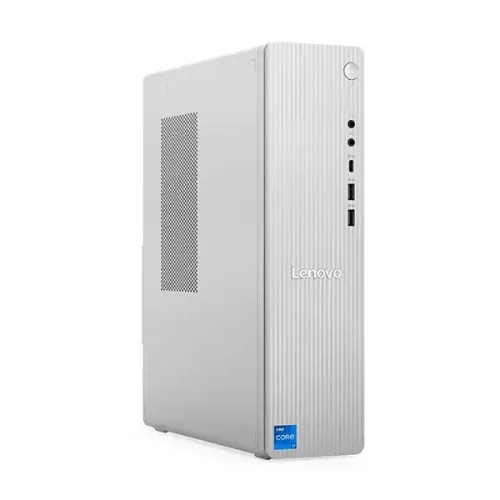

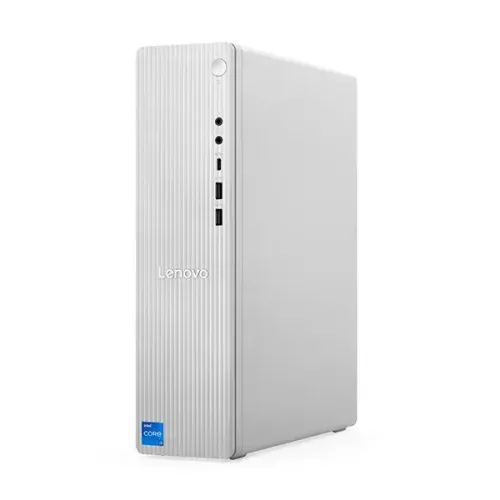

Lenovo IdeaCentre 08IRH9 Core i7 13th Gen Brand PC
Quick Details
- MPN: 90XW006KLK
- Model: IdeaCentre 08IRH9
- Processor: Intel Core i7-13620H (24MB Cache, up to 4.9GHz)
- RAM: 8GB DDR5, Storage: 512GB M.2 2280 PCIe SSD
- Graphics: Integrated, Intel UHD Graphics 730
- Connectivity: Wi-Fi 6, 802.11ax 2x2 + BT5.2
| Basic Information | |
| Processor | Intel Core i7-13620H 10 Cores (6P + 4E) 16 Threads Frequency: P-core up to 4.9GHz, E-core up to 3.6GHz 24MB Intel Smart Cache |
| Motherboard | Chipset: Intel B760 Chipset |
| RAM | 1x 8GB SODIMM DDR5-5200 Memory Slots: Two DDR5 SODIMM slots, Dual-channel capable Expandable Memory: Up to 32GB DDR5-5200 |
| Graphics Card | Integrated Intel UHD Graphics |
| Storage | 512GB M.2 2280 PCIe 4.0x4 NVMe SSD Max Storage Support: Up to three drives, 1x 3.5" HDD + 2x M.2 SSD • 3.5" HDD bay only for customer self-upgrade • M.2 SSD up to 1TB each |
| Audio | Audio Chip: High Definition (HD) Audio, Realtek ALC623-CG codec 24-bit DAC supports 44.1K/48K/96K sample rate, 2-channel DAC supports 16/20/24-bit PCM format for independent two stereo channels or 2.1 audio playback 24-bit ADC supports 44.1K/48K/96K sample rate, 2-channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs |
| Power Supply | 260W 90% |
| Network & Wireless Connectivity | Wi-Fi 6, 802.11ax 2x2 + BT5.2 Ethernet: Integrated 100/1000M |
| Operating System | FreeDOS |
| Security Management | Security Chip: Firmware TPM 2.0 integrated in SoC |
| Input Devices | |
| Keyboard | USB Calliope Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |

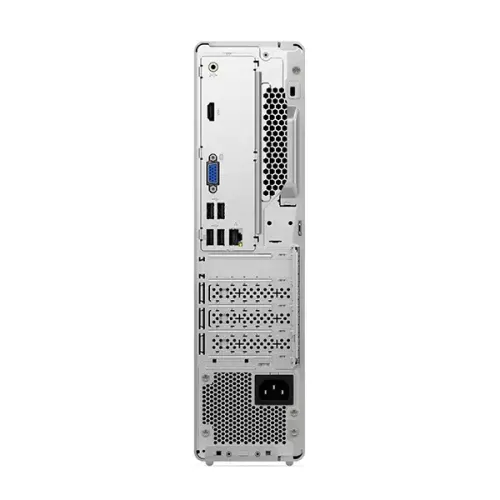

| External I/O Ports | Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x headphone/microphone combo jack (3.5mm) 1x microphone (3.5mm) Rear Ports: 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On 2x USB-A (Hi-Speed USB / USB 2.0) 1x HDMI 2.1 TMDS 1x VGA 1x Ethernet (RJ-45) 1x audio-out (3.5mm) 1x power connector |
| Physical Details | |
| Dimension | 89 x 291.4 x 339.5mm (3.5 x 11.5 x 13.4 inches) |
| Weight | Around 3.59 kg (7.9 lbs) |
| Color | Cloud Grey |
| Warranty Information | |
| Warranty | 3 Years |
Description
Lenovo IdeaCentre 08IRH9 Core i7 13th Gen Brand PC
The Lenovo IdeaCentre 08IRH9 Core i7 13th Gen Brand PC is a high-performance and compact desktop designed for modern productivity, business tasks, and smooth multitasking. Powered by the Intel Core i7-13620H processor with 10 cores (6 Performance + 4 Efficient) and 16 threads, this Lenovo IdeaCentre 08IRH9 Brand PC delivers outstanding speed with boost frequencies up to 4.9GHz and a 24MB Intel Smart Cache for efficient workload handling. Built on the Intel B760 chipset, the system includes 8GB DDR5-5200 SODIMM RAM with dual-channel support and upgrade capability up to 32GB, ensuring future-proof performance. Storage is fast and reliable with a 512GB M.2 2280 PCIe 4.0 x4 NVMe SSD, while the Lenovo IdeaCentre 08IRH9 also supports expansion up to three drives, including two M.2 SSDs and one 3.5" HDD for customer upgrades. Integrated Intel UHD Graphics 730 handles everyday graphics needs such as office applications, multimedia, and light creative work. For connectivity, this Lenovo IdeaCentre 08IRH9 Core i7 13th Gen Brand PC features Wi-Fi 6 (802.11ax 2x2), Bluetooth 5.2, and Gigabit Ethernet, ensuring fast and stable networking. Audio quality is enhanced by the Realtek ALC623-CG HD Audio codec with 24-bit DAC and ADC support for clear sound output and input. Running on FreeDOS with firmware-based TPM 2.0 security, the system is powered by an efficient 260W 90% PSU and includes a USB Calliope keyboard and mouse. With versatile front and rear I/O options including USB-C with 15W charging, HDMI 2.1, VGA, and multiple USB ports, all housed in a sleek Cloud Grey chassis measuring just 89 × 291.4 × 339.5mm and weighing around 3.59kg, the Lenovo IdeaCentre 08IRH9 Brand PC is an ideal space-saving desktop for professional and home users alike.
