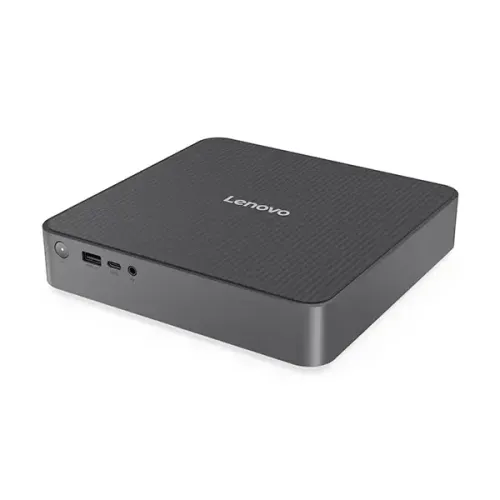

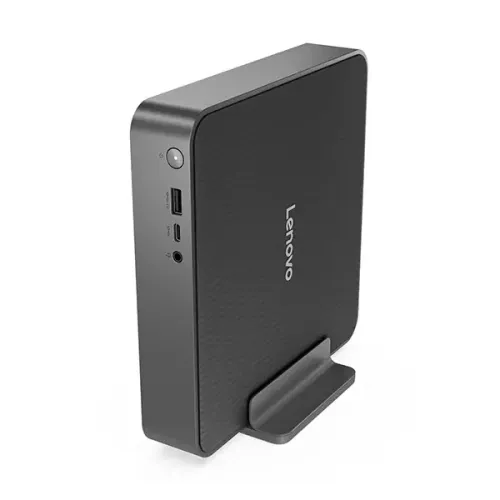

Lenovo IdeaCentre Mini 01IRH10R Core 5 210H Brand PC
Quick Details
- MPN: 91B20033HA
- Model: IdeaCentre Mini 01IRH10R
- Processor: Intel Core 5 210H (12MB Cache, up to 4.8GHz)
- RAM: 8GB DDR5, Storage: 512GB M.2 2280 PCIe SSD
- Graphics: Integrated, Intel UHD Graphics
- Connectivity: Wi-Fi 6E, 802.11ax 2x2 + BT5.3
| Basic Information | |
| Processor | Intel Core 5 210H 8 Cores (4P + 4E) 12 Threads (P-core 2.2 / 4.8GHz, E-core 1.6) 3.6GHz 12MB Intel Smart Cache |
| RAM | 1x 8GB SODIMM DDR5-5600 Two DDR5 SODIMM slots, Dual-channel capable Expandable Up to 32GB DDR5-5600 |
| Graphics Card | Integrated Intel Graphics |
| Storage | 512GB M.2 2280 PCIe 4.0x4 NVMe SSD Max Storage Support: Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each |
| Audio | High Definition (HD) Audio, Realtek ALC256 codec 24-bit DAC supports 44.1K/48K/96K sample rate, 2-channel DAC supports 24-bit PCM format 16-bit ADC supports 44.1K/48K/96K sample rate, 2 stereo ADC supports 16-bit PCM format. |
| Power Supply | 150W 92% |
| Network & Wireless Connectivity | Wi-Fi 6E, 802.11ax 2x2 + BT5.3 Ethernet: 2.5GbE (RJ-45) |
| Operating System | FreeDOS |
| Security Management | Security Chip: Firmware TPM 2.0 integrated in SoC |
| Input Devices | |
| Keyboard | USB Calliope Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |

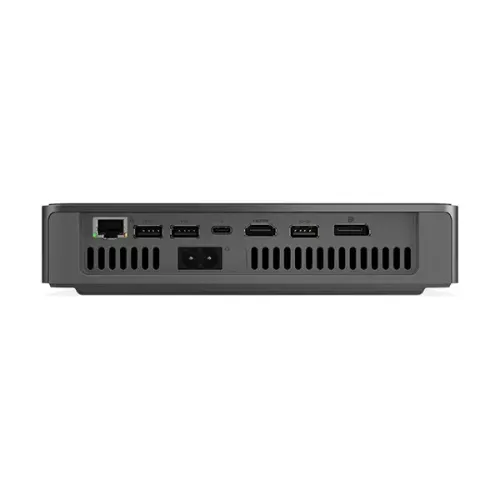

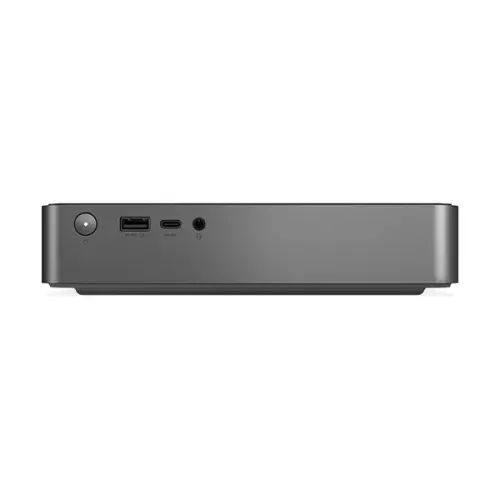

| External I/O Ports | Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2) 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On 1x headphone/microphone combo jack (3.5mm) Rear Ports: 1x USB-C (Thunderbolt 4 / USB4 40Gbps), with DisplayPort 1.4 1x USB-A (Hi-Speed USB / USB 2.0) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x HDMI 2.1 TMDS 1x DisplayPort 1.4b 1x Ethernet (RJ-45) 1x power connector |
| Physical Details | |
| Dimension | 191 x 195 x 42.7mm (7.52 x 7.677 x 1.68 inches) |
| Weight | Around 1.8 kg (3.97 lbs) |
| Color | Luna Grey |
| Warranty Information | |
| Warranty | 3 Years |
Description
Lenovo IdeaCentre Mini 01IRH10R Core 5 210H Brand PC
The Lenovo IdeaCentre Mini 01IRH10R Core 5 210H Brand PC is a compact, high-performance desktop that combines power, efficiency, and modern design in a sleek Luna Grey chassis measuring just 191 × 195 × 42.7mm and weighing around 1.8kg. This Lenovo IdeaCentre Mini 01IRH10R Brand PC is powered by the Intel Core 5 210H processor, featuring 8 cores (4 Performance + 4 Efficient) and 12 threads, with P-core speeds up to 4.8GHz, E-core base at 1.6GHz, and a 12MB Intel Smart Cache, delivering smooth multitasking and fast responsiveness for both home and professional use. It comes with 8GB DDR5-5600 RAM, expandable up to 32GB, and features a 512GB M.2 2280 PCIe 4.0 x4 NVMe SSD, with support for up to two M.2 SSDs of 1TB each, ensuring lightning-fast boot times and storage flexibility. Graphics are powered by integrated Intel UHD Graphics, suitable for everyday computing, media consumption, and multi-display setups. Connectivity on the Lenovo IdeaCentre Mini 01IRH10R includes Wi-Fi 6E (802.11ax 2×2), Bluetooth 5.3, and a 2.5GbE Ethernet port, while audio is enhanced with Realtek ALC256 HD Audio supporting high-resolution DAC and ADC. The system runs on FreeDOS and features Firmware TPM 2.0 for enhanced security. External I/O is extensive, including USB-C 10Gbps, USB-A 10Gbps, a 3.5mm audio jack, and on the rear, Thunderbolt 4 / USB4 (40Gbps) with DisplayPort 1.4, multiple USB-A ports, HDMI 2.1, DisplayPort 1.4b, and Ethernet. The Lenovo IdeaCentre Mini 01IRH10R Brand PC comes with a USB Calliope keyboard and mouse, making it a complete, space-saving desktop solution with strong performance, versatile connectivity, and excellent upgrade potential.
